Product Description

Laser Line Module Powell Lens 520nm 30mW Power Uniform Intensity Distribution

AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.

520nm 30mW Uniform Laser Line Module Descriptions

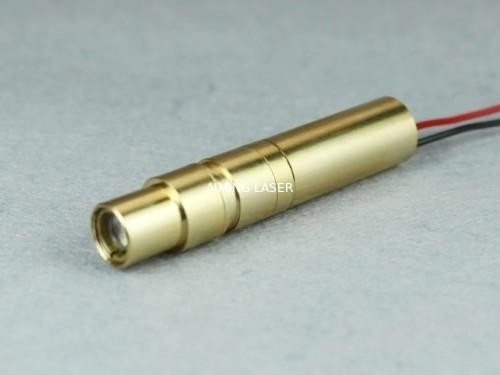

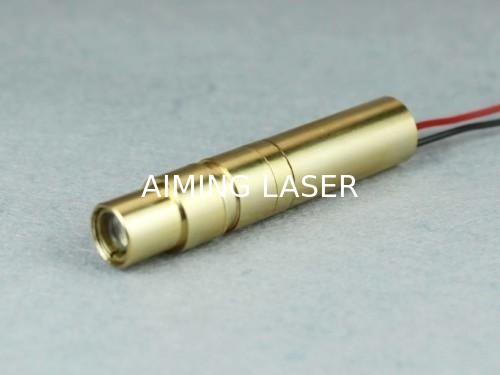

The AM520U50G1 is a green line module subassembly with collimated beam. The maximum laser output power is 30.0mW at 520nm. Energy is uniformly distributed.

520nm 30mW Uniform Laser Line Module Optical and Electrical Characteristics

520nm Powell Lens Laser Line Generator Applications

1. PPT vision
2. 3D vision system
3. Laser profilometer
4. Laser contour scanner
5. Machine visual products
6. Machine vision cameras
7. Industrial smart cameras
8. Laser scanning system
9. Laser measuring profilometer
10. Laser Scribe Positioning Machines
11. Industrial visual measurement system
12. Industrial robot visual guidance system
13. Automatic equipment visual positioning system

Why buy Laser Modules from AimLaser?

1. Provide One year warranty
2. Offer customized solutions
3. Normal sample lead time: within 2 weeks
4. Conform to ROHS, FDA, IEC, SGS standards
5. ISO9001:2008 certified laser module manufacturer
6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

Laser Modules Production Process

Laser Modules Production Equipment

Laser Modules Testing Equipment

Laser Module Payment and Shipment

1. MOQ: 1pc
2. Delivery time: 3-20 days
3. Shipment Terms: FOB Xi’an China
4. Payment Terms: T/T, Western Union, PayPal
5. Shipment Method: DHL, FedEx, UPS
