AimLaser provides customized Uniform Line Laser Diode Modules which use high quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.
The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.
650nm 50mW Uniform Line Laser Module Descriptions

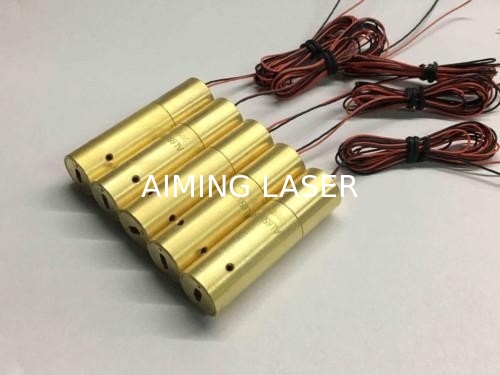

The AM650U100G1 is a red line laser module subassembly with collimated beam. The maximum laser output power is 50.0mW at 650nm. Energy is uniformly distributed.
650nm 50mW Uniform Line Laser Module Optical and Electrical Characteristics
| ITEM | SPECIFICATIONS |
| Model Number | AM650U100G1 Uniform Line Laser Module 50mW |
| Wavelength | 650nm |
| Output Power | ≤50.0mW |
| Output Aperture | 4.0mm |
| Line Width | ≤40um@500mm |
| Fan Angle | 90° |
| Divergence | 0.3mrad |
| Optics | Glass Lens |
| Operating Current | <160mA |
| Operating Voltage | 5V DC |
| CDRH Class | Class IIIb |
| Circuit control | Auto constant current (ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | 14x50mm (PCB Inside) |
| Case Material | Brass or Aluminum Black Anodized |
| Life Span | 10,000Hrs |
650nm Powell Lens Laser Line Generator Applications
