AimLaser provides customized Red and Green Laser Line Generators with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 12V DC or 110VAC.
We can make fixed focus and adjustable focus laser line projectors to meet different customers’ requirements.
Special power supply and mounting bracket are provided.
What is a Laser Line Generator?
Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.
It is widely used in wood, stone, and cloth cutting machines or packing machines by projecting a distinct red or green working line or edges for alignment and positioning on materials to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.
Why use a Laser Line Generator?
The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.

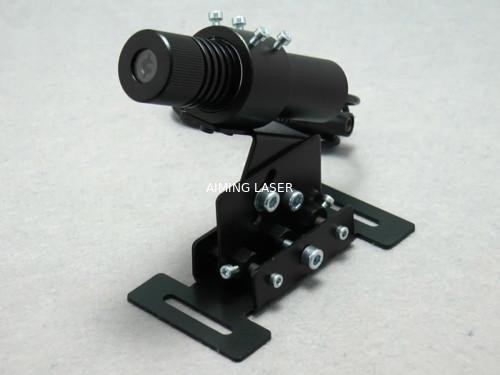

520nm 3mW Green Laser Line Generator Descriptions
The ALG520-10A is a green laser line generator for stone, wood and textile cutting machine. The maximum laser output power is 3.0 mW at 520nm.
520nm 3mW Green Laser Line Generator Optical and Electrical Characteristics
| ITEM | SPECIFICATIONS |
| Model Number | ALG520-10A Green Laser Line Generator |
| Wavelength | 520nm |
| Output Power | ≤5.0mW |
| Output Aperture | 5.0mm |
| Line Width | ≤1.5mm@3m |
| Fan Angle | 90° |
| Lin Length | 6m@3m |
| Divergence | 0.6mrad |
| Optics | Glass Lens |
| Operating Current | <150mA |
| Operating Voltage | 5V DC |
| CDRH Class | Class II |
| Circuit control | Auto power control (APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | 16x74mm (PCB Inside) |
| Case Material | Aluminum Black Anodized |
| Life Span | 8,000Hrs |
AimLaser Laser Line Generator Features
Laser Line Generator Applications
Why buy Laser Line Generators from AimLaser?
Laser Line Generator Production Process
Laser Line Generator Production Equipment
Laser Line Generator Testing Equipment
Laser Line Generator Payment and Shipment
