Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | MN520-10FA |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |
| Ouput Power: | 5mW | Housing Size: | 4x10mm (APC Outside) |
|---|---|---|---|
| Material: | Brass |

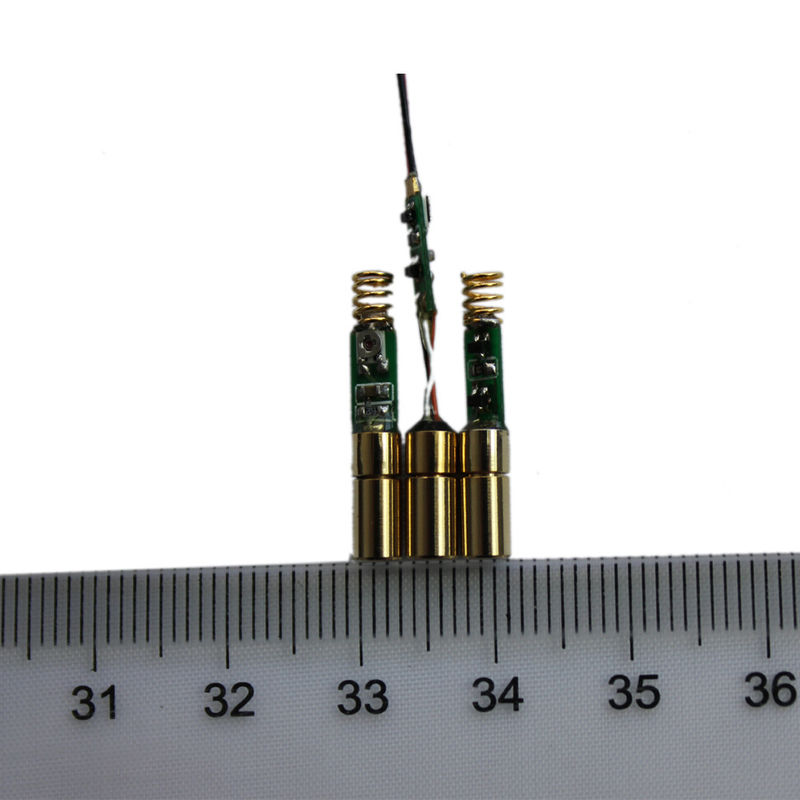

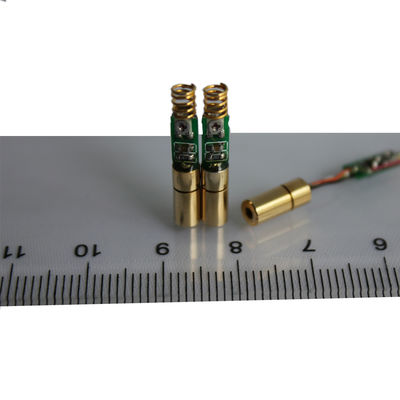

FDA 520nm 5mW Mini Green Laser Module 4x8.5mm with PD Feedback for gun laser sight, laser alignment tools
1. Mini Laser Diode Module Description:
The mini laser diode module, small dimension with low power consumption, is particularly suitable for built-in miniature devices and tools, which could enable the laser tools and equipment miniaturized.
We supply mini compact laser module in red, green, infrared to suit into gun applications.
2. Mini Laser Diode Module Features:
a.High quality
b.Mini size
c.Low power consumption
d.APC power control
e.Long life operation:>10,000hrs
f.Customized solutions for OEM applications
3. Mini Laser Diode Module Specifications:
|
Model |
Wave Length |
Output Power |
Aperture |
Divergence
|
Beam Size |
Lens |
Dimension |
|
MN520-05FA |
520nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.4.0x8.5mm |
|
MN520-05FB |
520nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN520-05FC |
520nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN520-10FA |
520nm |
<5.0mw |
Dia.1.8mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.4.0x8.5mm |
|
MN520-10FB |
520nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN520-10FC |
520nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN635-05FA |
635nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN635-05FB |
635nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN635-05FC |
635nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN635-10FA |
635nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN635-10FB |
635nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN635-10FC |
635nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN650-05FA |
650nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN650-05FB |
650nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN650-05FC |
650nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN650-10FA |
650nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN650-10FB |
650nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN650-10FC |
650nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN850-05FA |
850nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN850-05FB |
850nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN850-05FC |
850nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN850-10FA |
850nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN850-10FB |
850nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN850-10FC |
850nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
Note: We can provide you best solutions if there is no model meet your requirement.
4. Why Choose us?
12 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Supplier of main American Gun Sight Manufactueres.
6. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 100,000pcs per month.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
7. Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
8. CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
