FDA 650nm 5mW Red Dot Laser Module Mini Size 4x10mm for Laser Aiming Devices

FDA Red Laser Module, 650nm 5mW Red Dot Laser Module Mini Size 4x8mm with APC for Laser Aiming Devices

1. Descriptions:

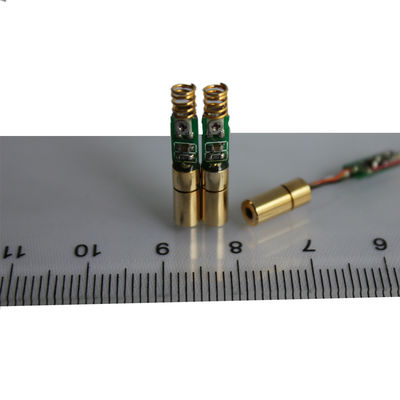

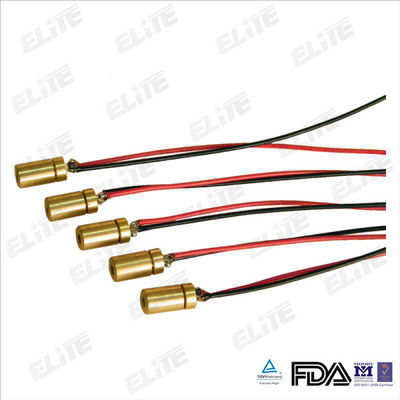

The MN650-05FB is a mini red laser module subassembly with collimated beam. The maximum laser
output power is 5.0mW at 650nm.

2. Features:

• Wavelength: 650nm
• Optical output power: ≤5.0mW
• Low operating current: <35mA
• Low operating voltage: 3.0VDC
• Class IIIa laser, CDRH/ROHS compatible
• Static, Surge, and Reverse Polarity Protected
• Circuit control: Auto power control (APC)
• Operating Temperature: -10 to 50°C

3. Optical and Electrical Characteristics:

• Wavelength: 650±5nm
• Output Power: ≤5.0mw
• Laser Modes: CW
• Output Aperture: Dia 1.8mm
• Beam Size: <5x10mm (@10m) and <8x20mm (@20m)
• Divergence: 0.8mrad
• Optics: Glass lens
• Operating Current: 35mA
• Operating Voltage: 3.0VDC
• CDRH Class: Class IIIa
• MTTF: 10000 Hrs.

4. Mechanical Characteristics:

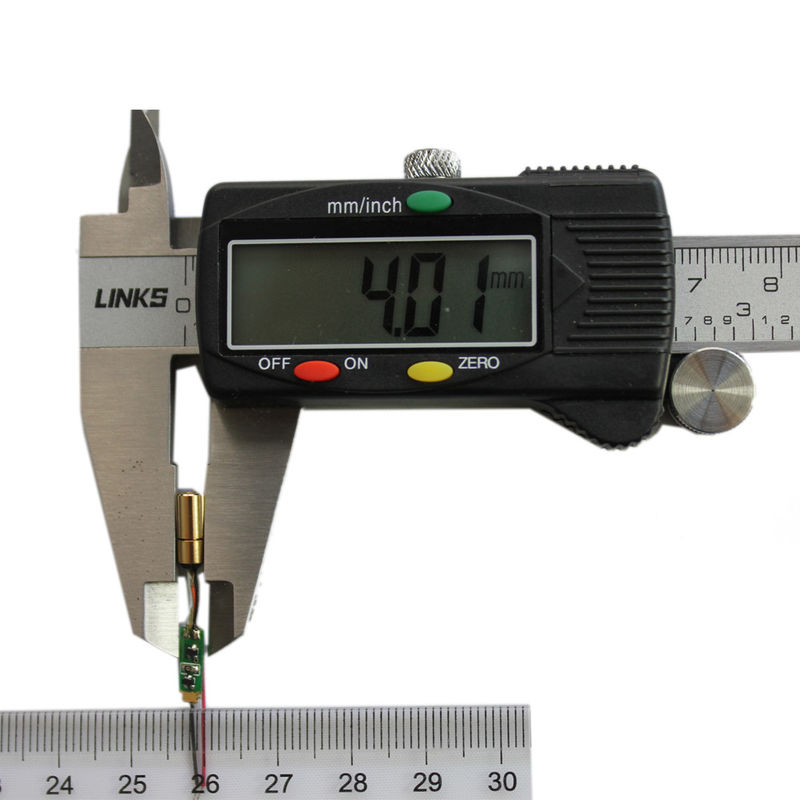

• Dimension: 4x10mm (APC Inside)
• Case Materia: Brass

5. ​Why Choose us?

• 13 years rich industry experience since 2003
• SGS TUV assessed supplier
• Have FDA, ISO9001:2008, IEC certificates
• Cooperation with Top 500 Global Companies like GE, Corning etc.

6. Delivery & Payment Information:

• Shipment Term: FOB Xi’an, China.
• Payment Terms: T/T, Western Union, Paypal
• Shipping Method: DHL/UPS/TNT/FedEx Air-Express

7. Elite Factory Over view:

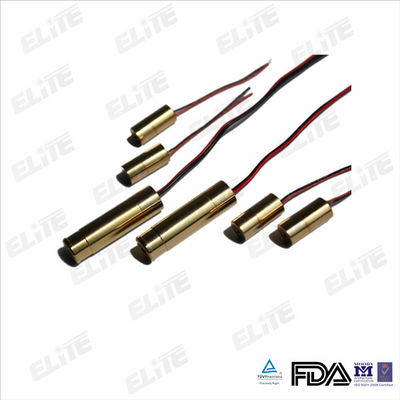

Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, Bios lasers, fiber coupled laser modules, DPSS laser modules, laser line projector, laser bore sighters, laser sights etc.
