| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | Mini Laser Module |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |
| Wavlength: | 520nm | Output Power: | 5mW |
|---|---|---|---|
| Material: | Brass | Optics: | Glass Lens |
| Operating Temperature: | -10 To 50°C | CDRH Class: | Class IIIa Laser, CDRH/ROHS Compatible |
FDA Compact Size 520nm 5mW Green Laser Module with APC for Laser Grips; Class IIIa Laser
1. Descriptions:

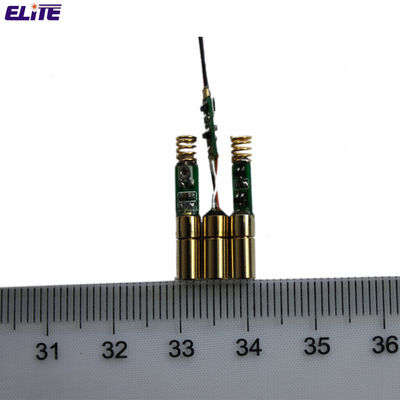

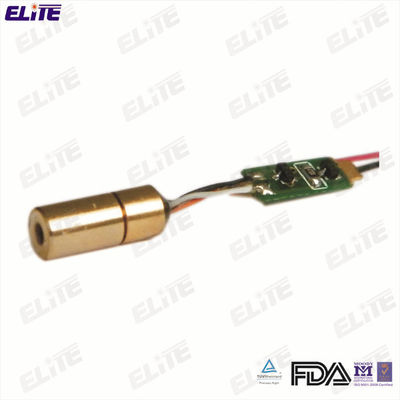

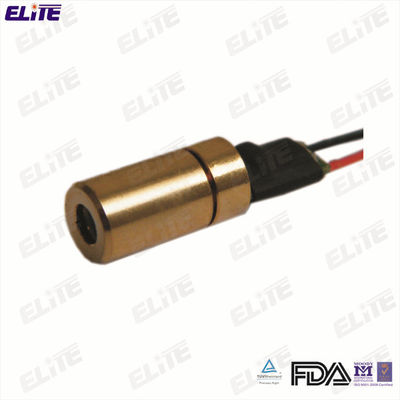

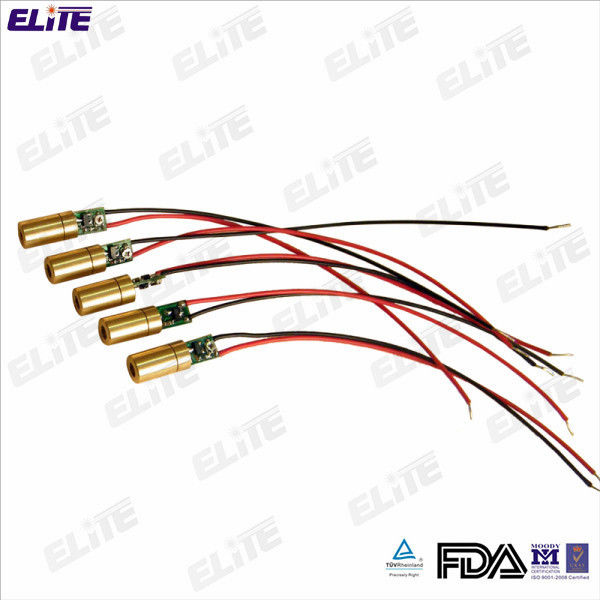

The MN520-10FA is a green mini laser module subassembly with collimated beam. The maximum laser
output power is 5.0mW at 520nm.
2.520nm Green Laser Module Optical and Electrical Characteristics:
| Item | Parameters |
| Wavelength: | 520±5nm |
| Output Power: | ≤1.0mw |
| Laser Mode: | CW |
| Output Aperture: | Dia 2.4mm |
| Circuit control: | Auto power control (APC) |
| Beam Size: | <5x10mm (@10m) and <8x20mm (@20m) |
| Divergence: | 1.0mrad |
| Optics: | Glass lens |
| Operating Current: | <20mA |
| Operating Voltage: | 3VDC |
| Operating Temperature: | -10 to 50°C |
| CDRH Class: | Class IIIa laser, CDRH/ROHS compatible |
| MTTF: | 80000Hrs. |
| Circuit Protection: | Static, Surge, and Reverse Polarity Protected |

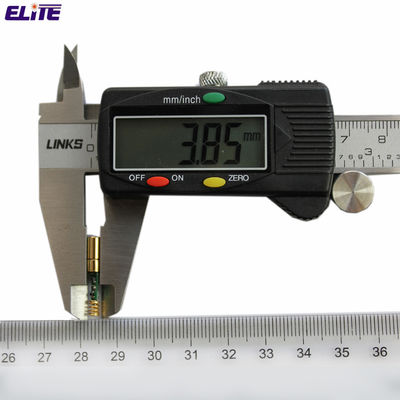

| Dimensions: | 4x8.5mm (APC Outside) |
| Cable Length: | 50mm 30AWG |
| Case Material: | Aluminum black anodized or Brass |
3.Elite Mini Laser Module Applications:
a.Laser alignment, aiming, positioning and pointing
b.Industrial instrument and equipment
c.Gun laser sight
d.Bar code scan etc.
4. Why Choose Laser Modules from Elite?
a. ISO9001 certified factory and has FDA certificate.
b. 13 years rich industry experience since 2003.
c. Sample delivery can be short in 5 days.
d. Individual laser solutions are provided with our strong OEM and ODM capability.
5. Elite Factory Over view:
Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, Bios lasers, fiber coupled laser modules, DPSS laser modules, laser line projector, laser bore sighters, laser sights etc.
