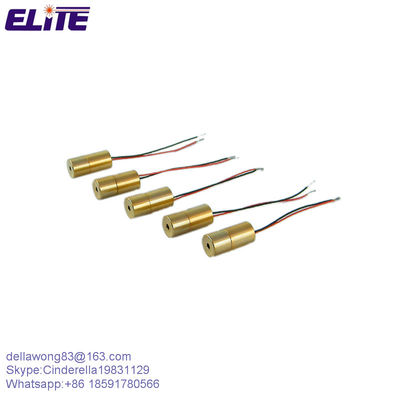

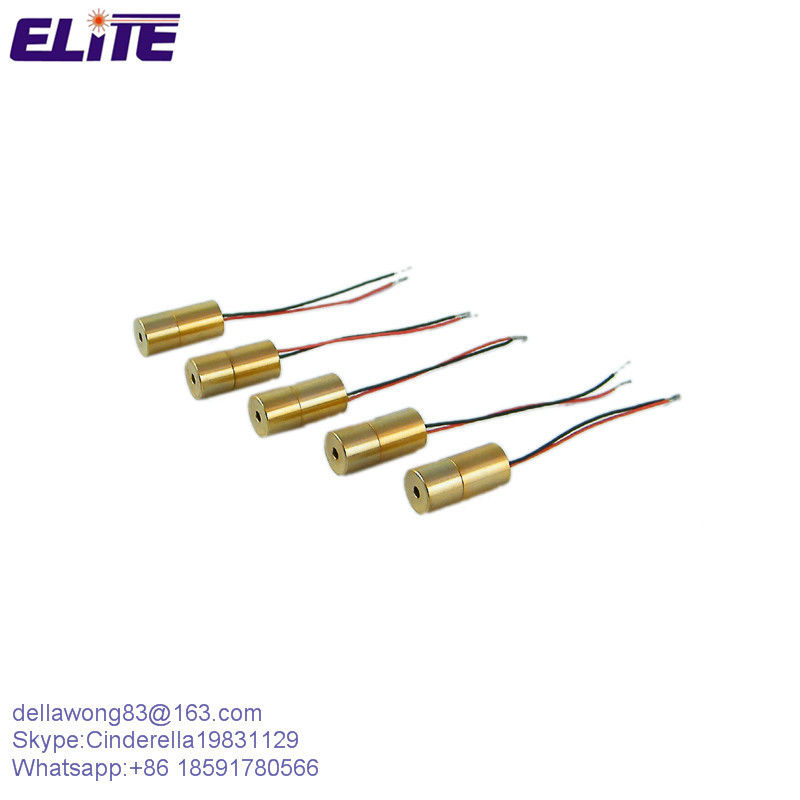

850nm 5mW Mini Infrared Laser Module 4x10mm for Laser Aiming Devices with PD Feedback

Product Details:

Place of Origin:	CHINA
Brand Name:	AIMLASER, ELITELASER
Certification:	FDA
Model Number:	MN850-10FB

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	FOB Xi'an China
Packaging Details:	Anti-Static Bag or PE Bag
Delivery Time:	2-4 Weeks
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	20,000pcs/Month

Contact Now

Detailed Product Description

Wavelength:	850nm	Output Power:	5mW
Optics:	Glass Lens	CDRH Class:	Class IIIa
Dimensions:	4x10mm (APC Inside)	Case Material:	Brass

Mini Laser Module, 850nm 5mW Mini Infrared Laser Module 4x10mm for Laser Aiming Devices with PD Feedback

1. Descriptions:

The MN850-10FB is a mini infrared laser module subassembly with collimated beam. The maximum laser
output power is 5.0mW at 850nm.

2. Features:

Wavelength: 850±5nm
Optical output power: ≤5.0mW
Low operating current: <25mA
Low operating voltage: 3.0VDC
Class IIIa laser, CDRH/ROHS compatible
Static, Surge, and Reverse Polarity Protected
Circuit control: Auto power control (APC)
Operating Temperature: -10 to 50°C

3. Optical and Electrical Characteristics:

Wavelength: 850±5nm
Output Power: ≤ 5.0mw
Laser Modes: CW
Output Aperture: Dia 2.4mm
Beam Size: <4x8mm (@10m) and <8x16mm (@20m)
Divergence: 0.6mrad
Optics: Glass lens
Operating Current: <25mA
Operating Voltage: 3.0VDC
CDRH Class: Class IIIa
MTTF: 8000 Hrs.

4. Mechanical Characteristics:

Dimensions: 4x10mm (APC Inside)
Cable Length: 50mm 30AWG
Case Materia: Brass

5. Why Choose us?

13 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Cooperation with Top 500 Global Companies like GE, Corning etc.

6. Delivery & Payment Information:

Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/UPS/TNT/FedEx Air-Express

7. Elite Factory Over view:

Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, Bios lasers, fiber coupled laser modules, DPSS laser modules, laser line projector, laser bore sighters, laser sights etc.
