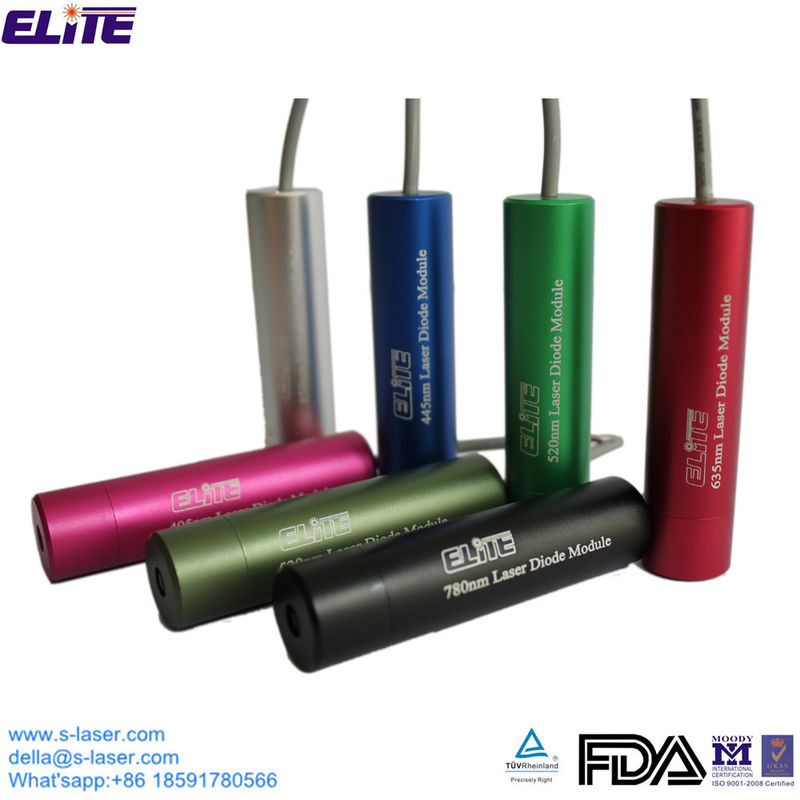

Laser Module, 405nm Laser Module, 5mW-120mW 405nm Laser Diode Module Dot & Line Beam with Built-in PD
1.Elite 405nm Laser Diode Module Description:
Elite could provide high quality 405nm (Violet) 5mw-120mw Dot & Line laser diode module. Except the models listed below, several more options are available. Elite could also do customized new Blue Violet & Green Laser Diode Module.
b. Compact size
c. Low power consumption
d. Customized solutions for OEM applications
|
Model |
Wave Length |
Output Power |
Driver |
Aperture |
Divergence |
Beam Size |
Dimension |
|
VB405D05VG1 |
405nm |
<2.5mW |
APC |
Dia.4.5mm |
0.2mrad |
Dia.5mm@10m |
Dia.10x35mm |
|
VB405D05VG2 |
405nm |
<3.5mW |
APC |
Dia.5.0mm |
0.2mrad |
4x8mm@10m |
Dia.12x40mm |
|
VB405D05VG3 |
405nm |
<3.0mW |
APC |
Dia.6.0mm |
0.1mrad |
Dia.6mm@20m |
Dia.14x50mm |
|
VB405D10VG1 |
405nm |
<5.0mW |
APC |
Dia.4.5mm |
0.1mrad |
Dia.5mm@10m |
Dia.10x35mm |
|
VB405D10VG2 |
405nm |
<7.0mW |
APC |
Dia.5.0mm |
0.2mrad |
4x8mm@10m |
Dia.12x40mm |
|
VB405D10VG3 |
405nm |
<6.0mW |
APC |
Dia.6.0mm |
0.1mrad |
Dia.6mm@20m |
Dia.14x50mm |
|
VB405D20VG1 |
405nm |
<10.0mW |
APC |
Dia.4.5mm |
0.1mrad |
Dia.8mm@20m |
Dia.12x40mm |
|
VB405D20VG2 |
405nm |
<14.0mW |
APC |
Dia.5.0mm |
0.2mrad |
6x12mm@20m |
Dia.12x40mm |
|
VB405D20VG3 |
405nm |
<10.0mW |
APC |
Dia.6.0mm |
0.1mrad |
Dia.6mm@20m |
Dia.14x50mm |
|
VB405D40VG1 |
405nm |
<20.0mW |
APC |
Dia.4.5mm |
0.1mrad |
Dia.8mm@20m |
Dia.14x50mm |
|
VB405D40VG2 |
405nm |
<28.0mW |
APC |
Dia.5.0mm |
0.2mrad |
6x12mm@20m |
Dia.14x50mm |
|
VB405D40VG3 |
405nm |
<20.0mW |
APC |
Dia.6.0mm |
0.1mrad |
Dia.6mm@20m |
Dia.14x50mm |
|
VB405D60VG1 |
405nm |
<30.0mW |
APC |
Dia.4.5mm |
0.1mrad |
Dia.8mm@20m |
Dia.14x50mm |
|
VB405D60VG2 |
405nm |
<40.0mW |
APC |
Dia.5.0mm |
0.2mrad |
6x12mm@20m |
Dia.14x50mm |
|
VB405D60VG3 |
405nm |
<40.0mW |
APC |
Dia.6.0mm |
0.1mrad |
Dia.6mm@20m |
Dia.14x50mm |
|
VB405D100VG1 |
405nm |
<50.0mW |
APC |
Dia.4.5mm |
0.1mrad |
Dia.8mm@20m |
Dia.16x60mm |
|
VB405D100VG2 |
405nm |
<70.0mW |
APC |
Dia.5.0mm |
0.2mrad |
6x12mm@20m |
Dia.16x60mm |
|
VB405D100VG3 |
405nm |
<60.0mW |
APC |
Dia.6.0mm |
0.1mrad |
Dia.6mm@20m |
Dia.14x50mm |
Note:
1. The Dot series laser diode module is customized product. Thus the dimension, dot size, divergence and power output could be customized.
2. If the model listed is not suitable, please advise your detailed requirements, we will design the laser module according to yours.
3. Elite is continually developing new models and launching to market. We will advise suitable model upon enquiry.
4. Elite 405nm Laser Diode Module Applications:
a. Laser alignment and positioning
b. Industrial instruments and equipments
c. Medical Treatment Instruments
d. Other OEM applications……
5. Bore Sight Packages:
a.Plain Poly Bag: free of charge.
b.Plain White Box Package:MOQ:1,000pcs.
c.Blister Package :MOQ:2,000pcs.
d.Pouch Pacakge :MOQ:1,000pcs.
e.SPTE Package :MOQ:1000pcs.
6. Why buy Laser Bore Sighters from AimLaser?
※ Laser Bore Sighters Production Process
※ Laser Bore Sighters Production Equipment
※ Laser Bore Sighters Testing Equipment
7. Delivery & Payment Info.:
MOQ: 10pcs.
Delivery Time: 5-20 days
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
8. Elite Laser Training Cartridge and Laser Bore Sight List:
| Caliber | Notes | Caliber | Notes |
| .223 Rem. | same as 5.56mm Rifle | 45-70Gov. | Rifle |
| 204 | Rifle | 6.5x55mm | Rifle |
| 7.62x39mm | Rifle | 38Spec. | Pistol |
| 7.62x51 US | Rifle | 44Mag. | Pistol |
| 7.62mm RUS | Rifle | 45ACP | Pistol |
| 7.62x54 | Rifle | 45Colt | Pistol |
| 25-06Rem. | Rifle | .22 | Pistol |
| 30-06Spr. | Rifle | 17H.M.R. | Pistol |
| 270Win. | Rifle | 8x57mm | Rifle |
| 243Win. | Rifle | 40S&W | Pistol |
| 308Win. | Rifle | 338LM(Lapua Magnum) | Rifle |
| 260Rem. | Rifle | 50BMG | Rifle |
| 7mm-08Rem. | Rifle | 250(250/3000Savage) | Rifle |
| 358mm | Rifle | 6.5x57mm | Rifle |
| 12 Gauge | Shotgun | 7x57mm Rem. | Rifle |
| 20 Gauge | Shotgun | 7x64mm | Rifle |
| 30 Carbine | Rifle | 7x65mm Rem. | Rifle |
| 9mm Luger | Pistol | 9.3x62mm | Rifle |
| 22-250Rem | Rifle | 303British | Rifle |
| 30-30Win | Rifle | 222Rem. | Rifle |
| 264Win | Rifle | 375H+H | Rifle |
| 8mm Rem. | Rifle | 270WSM | Rifle |
| 300Win. | Rifle | 300WSM | Rifle |
| 7mmRem | Rifle | 5.8mm | Rifle |
