Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | Well-distributed Line Laser Module |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |

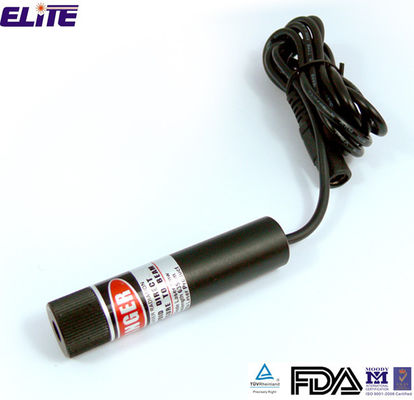

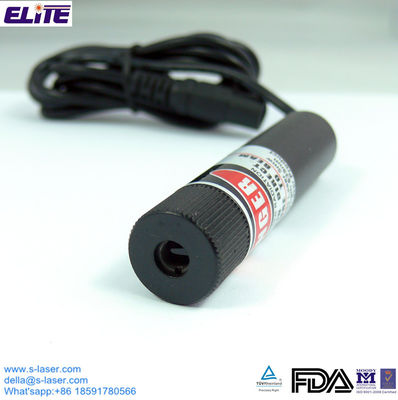

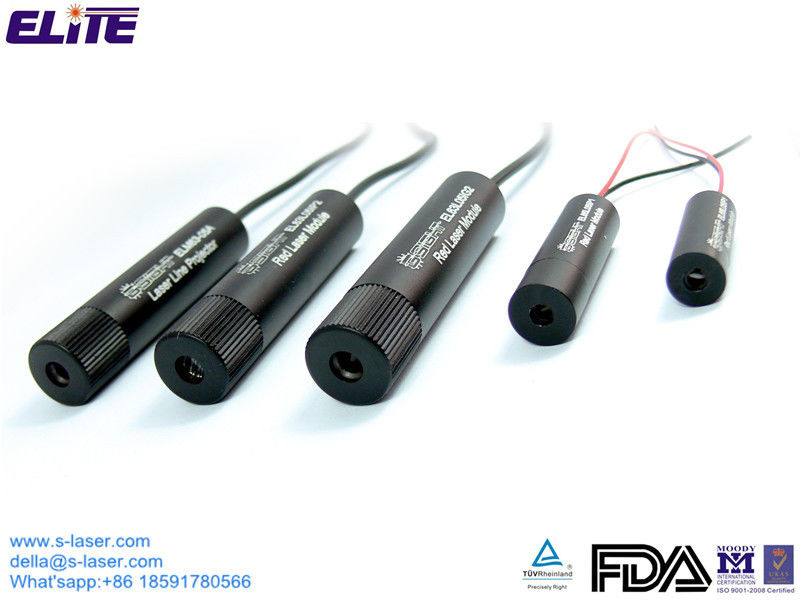

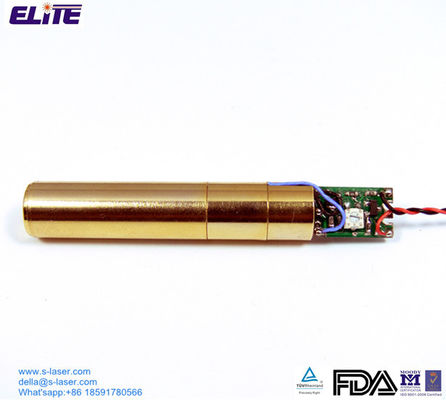

Line Laser Module, Well-distributed Line Laser Module with Line Width 10um-200um (<300mm) or 0.5-1mm (<1m), 405nm-850nm 5mw-25mw even distributed energy line laser module
1.Elite Well-distributed Line Laser Module Description:
Elite provides a series of line laser modules with even energy distribution. Line thickness could be small as to 10um, fan angle ranges from 10° to 90°, with various power and different wavelength 405nm, 445nm, 520nm, 532nm 635nm, 650nm, 780nm, 830nm, 850nm. This product has characteristics of high stability, reliability, compact size, etc.
2.Elite Well-distributed Line Laser Module Features:
a. High stability and high reliability
b. Compact size
c. Low power consumption
d. Customized solutions for OEM applications
3.Elite Well-distributed Line Laser Module Specifications:
|
Model |
Wave Length |
Output Power |
Line Width |
Fan Angle |
Dimension |
|
|
I Class |
II Class |
|||||
|
WD635-10GLP |
635nm |
<5.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD635-20GLP |
635nm |
<10mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD635-30GLP |
635nm |
<15mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD635-40GLP |
635nm |
<20mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD635-50GLP |
635nm |
<25mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD650-10GLP |
650nm |
<5.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD650-20GLP |
650nm |
<10mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD650-30GLP |
650nm |
<15mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD650-40GLP |
650nm |
<20mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD650-50GLP |
650nm |
<25mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD520-10GLP |
520nm |
<5.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD520-20GLP |
520nm |
<10mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD520-30GLP |
520nm |
<14mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD520-40GLP |
520nm |
<18mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD520-50GLP |
520nm |
<20mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD532-01GLP |
532nm |
<1.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x55mm |
|
WD532-05GLP |
532nm |
<5.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x55mm |
|
WD532-10GLP |
532nm |
<10mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x55mm |
|
WD780-10GLP |
780nm |
<5.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD780-20GLP |
780nm |
<10mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD780-30GLP |
780nm |
<15mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD780-40GLP |
780nm |
<20mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD780-50GLP |
780nm |
<25mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD830-10GLP |
830nm |
<5.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD830-20GLP |
830nm |
<10mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD830-30GLP |
830nm |
<15mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD830-40GLP |
830nm |
<20mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD830-50GLP |
830nm |
<25mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD850-10GLP |
850nm |
<5.0mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD850-20GLP |
850nm |
<10mw |
10-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.12x45mm |
|
WD850-30GLP |
850nm |
<15mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD840-40GLP |
850nm |
<20mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
|
WD850-50GLP |
850nm |
<25mw |
20-200um(<300mm) |
0.5-1.0mm(<1m) |
10°-90° |
Dia.14x50mm |
Note: We can provide you laser solutions if there is no model meets your requirement.
4. Elite Well-distributed Line Laser Module Applications:
a. Laser alignment and positioning
b. Industrial instruments and equipments
c. Medical Treatment Instruments
d. Construction positioning
e. Other OEM applications……
5. Bore Sight Packages:
a.Plain Poly Bag: free of charge.
b.Plain White Box Package:MOQ:1,000pcs.
c.Blister Package :MOQ:2,000pcs.
d.Pouch Pacakge :MOQ:1,000pcs.
e.SPTE Package :MOQ:1000pcs.
6. Why buy Laser Bore Sighters from AimLaser?
※ Laser Bore Sighters Production Process
※ Laser Bore Sighters Production Equipment
※ Laser Bore Sighters Testing Equipment
7. Delivery & Payment Info.:
MOQ: 10pcs.
Delivery Time: 5-20 days
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
8. Elite Laser Training Cartridge and Laser Bore Sight List:
| Caliber | Notes | Caliber | Notes |
| .223 Rem. | same as 5.56mm Rifle | 45-70Gov. | Rifle |
| 204 | Rifle | 6.5x55mm | Rifle |
| 7.62x39mm | Rifle | 38Spec. | Pistol |
| 7.62x51 US | Rifle | 44Mag. | Pistol |
| 7.62mm RUS | Rifle | 45ACP | Pistol |
| 7.62x54 | Rifle | 45Colt | Pistol |
| 25-06Rem. | Rifle | .22 | Pistol |
| 30-06Spr. | Rifle | 17H.M.R. | Pistol |
| 270Win. | Rifle | 8x57mm | Rifle |
| 243Win. | Rifle | 40S&W | Pistol |
| 308Win. | Rifle | 338LM(Lapua Magnum) | Rifle |
| 260Rem. | Rifle | 50BMG | Rifle |
| 7mm-08Rem. | Rifle | 250(250/3000Savage) | Rifle |
| 358mm | Rifle | 6.5x57mm | Rifle |
| 12 Gauge | Shotgun | 7x57mm Rem. | Rifle |
| 20 Gauge | Shotgun | 7x64mm | Rifle |
| 30 Carbine | Rifle | 7x65mm Rem. | Rifle |
| 9mm Luger | Pistol | 9.3x62mm | Rifle |
| 22-250Rem | Rifle | 303British | Rifle |
| 30-30Win | Rifle | 222Rem. | Rifle |
| 264Win | Rifle | 375H+H | Rifle |
| 8mm Rem. | Rifle | 270WSM | Rifle |
| 300Win. | Rifle | 300WSM | Rifle |
| 7mmRem | Rifle | 5.8mm | Rifle |
