Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | 650nm Line Laser Module |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |

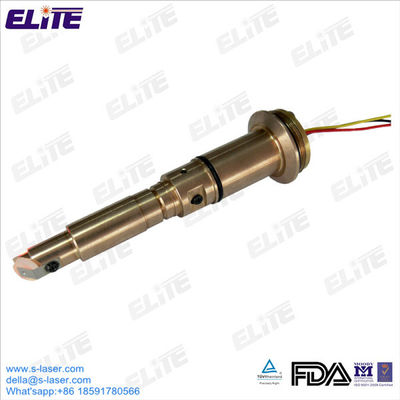

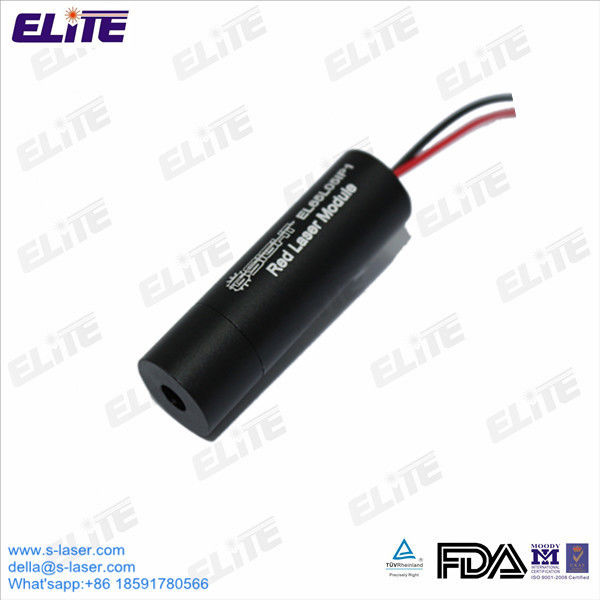

Laser Module, 650nm Laser Module, 3mW-60mW 650nm Laser Diode Module Line Beam with Built-in PD and Fan Angle 5°-130°
1.Elite 650nm Laser Diode Module Description:
650nm laser diode modules with built-in PD greatly improved its reliability and stability, which is helpful to the miniaturized of products.
It can be widely used into industrial instruments and equipments, outdoor testing instruments and equipment etc.
b. Compact size
c. Low power consumption
d. Customized solutions for OEM applications
|
Model |
Wave Length |
Output Power |
Driver |
Fan Angle |
Line Thickness |
Dimensions |
|
EL65L05IP1 |
650nm |
<3.0mw |
APC |
120° |
<1mm(@1m) |
Dia.8x25mm |
|
EL65L05IG2 |
650nm |
<3.0mw |
APC |
5°- 130° |
<2mm(@5m) |
Dia.10x35mm |
|
EL65L05IG3 |
650nm |
<2.8mw |
APC |
5°- 130° |
<3mm(@10m) |
Dia.10x35mm |
|
EL65L05IG9 |
650nm |
<2.5mw |
APC |
5°- 130° |
<1mm(@1m) |
Dia.8x25mm |
|
EL65L10IP1 |
650nm |
<6.0mw |
APC |
120° |
<1mm(@1m) |
Dia.8x25mm |
|
EL65L10IG2 |
650nm |
<6.0mw |
APC |
5°- 130° |
<2mm(@5m) |
Dia.10x35mm |
|
EL65L10IG3 |
650nm |
<5.0mw |
APC |
5°- 130° |
<3mm(@10m) |
Dia.10x35mm |
|
EL65L10IG9 |
650nm |
<6.0mw |
APC |
5°- 130° |
<1mm(@1m) |
Dia.8x25mm |
|
EL65L20IG2 |
655nm |
<12.0mw |
APC |
5°- 130° |
<2mm(@5m) |
Dia.8x25mm |
|
EL65L20IG3 |
655nm |
<12.0mw |
APC |
5°- 130° |
<3mm(@10m) |
Dia.10x35mm |
|
EL65L20IG9 |
655nm |
<10.0mw |
APC |
5°- 130° |
<1mm(@1m) |
Dia.12x40mm |
|
EL65L30IG2 |
655nm |
<18.0mw |
APC |
5°- 130° |
<4mm(@10m) |
Dia.12x40mm |
|
EL65L30IG3 |
655nm |
<16.0mw |
APC |
5°- 130° |
<3mm(@10m) |
Dia.14x50mm |
|
EL65L30IG9 |
655nm |
<18.0mw |
APC |
5°- 130° |
<1mm(@1m) |
Dia.16x60mm |
|
EL65L40IG2 |
658nm |
<25.0mw |
APC |
5°- 130° |
<4mm(@10m) |
Dia.12x40mm |
|
EL65L40IG3 |
658nm |
<22.0mw |
APC |
5°- 130° |
<3mm(@10m) |
Dia.14x50mm |
|
EL65L40IG9 |
658nm |
<25.0mw |
APC |
5°- 130° |
<1mm(@1m) |
Dia.16x60mm |
|
EL65L60IG2 |
658nm |
<35.0mw |
APC |
5°- 130° |
<4mm(@10m) |
Dia.14x50mm |
|
EL65L60IG3 |
658nm |
<32.0mw |
APC |
5°- 130° |
<3mm(@10m) |
Dia.16x60mm |
|
EL65L60IG9 |
658nm |
<35.0mw |
APC |
5°- 130° |
<1mm(@1m) |
Dia.20x70mm |
|
EL65L80IG2 |
658nm |
<50.0mw |
ACC |
5°- 130° |
<4mm(@10m) |
Dia.14x50mm |
|
EL65L80IG3 |
658nm |
<45.0mw |
ACC |
5°- 130° |
<3mm(@10m) |
Dia.16x60mm |
|
EL65L80IG9 |
658nm |
<50.0mw |
ACC |
5°- 130° |
<1mm(@1m) |
Dia.20x70mm |
|
EL65L100IG2 |
660nm |
<60.0mw |
ACC |
5°- 130° |
<6mm(@20m) |
Dia.16x60mm |
|
EL65L100IG3 |
660nm |
<55.0mw |
ACC |
5°- 130° |
<5mm(@20m) |
Dia.20x70mm |
|
EL65L100IG9 |
660nm |
<60.0mw |
ACC |
5°- 130° |
<1mm(@1m) |
Dia.22x70mm |
|
EL65L130IG2 |
660nm |
<78.0mw |
ACC |
5°- 130° |
<8mm(@30m) |
Dia.16x60mm |
|
EL65L130IG3 |
660nm |
<72.0mw |
ACC |
5°- 130° |
<6mm(@30m) |
Dia.20x70mm |
|
EL65L130IG9 |
660nm |
<75.0mw |
ACC |
5°- 130° |
<1mm(@1m) |
Dia.22x70mm |
Note:
1. Dimension could be customized.
2. Line width and fan angle is adjustable according to applied operating range.
3. Output power is also customized.
4. More line laser module models could be supplied, if you have special requirements, please don’t hesitate to contact us, we will provide the solution.
4. Elite 650nm Laser Diode Module Applications:
a. Laser alignment and positioning
b. Industrial instruments and equipments
c. Outdoor testing Instruments
d. Other OEM applications……
5.Why Choose us?
a.12 years rich industry experience since 2003
b.SGS TUV assessed supplier
c.Have FDA, ISO9001:2008, IEC certificates
d.Cooperation with Top 500 Global Companies like GE, Corning etc.
6. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 100,000pcs per month.
Packaging Details: Each module packed into anti-static plastic bag, every ten pieces wrapped with bubble paper, bulk into export cartons.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
7.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
8.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
9.Elite QC Flow:
a.Professional Power Meter for double check
b.Qualified professional staff for the beam size/line thickness testing
c.Strictly surface Inspection before load to the warehouse
10.Elite Factory:
Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, fiber coupled laser modules, DPSS laser modules, bore sights, laser sights and related laser instruments like laser pointers etc.
Elite’s products have been widely used in industrial positioning, bar code scan, medical instruments, detecting instruments, surveying instruments, laser instruments, gun laser sights, wild explore instruments, military sight collimating, laser performance systems, laser tools etc.
With certificates of ISO 9001:2008, FDA, IEC, GB and strong OEM & ODM ability, we assure our customers with quality, reliable and consistent products delivery.
