Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | 635nm Dot Laser Module |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |

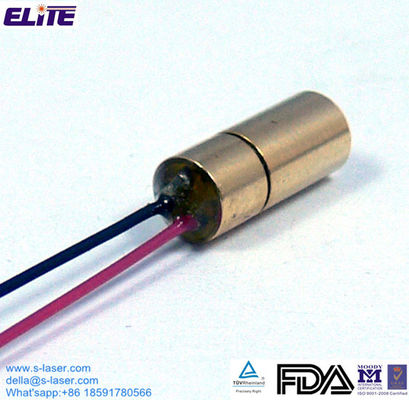

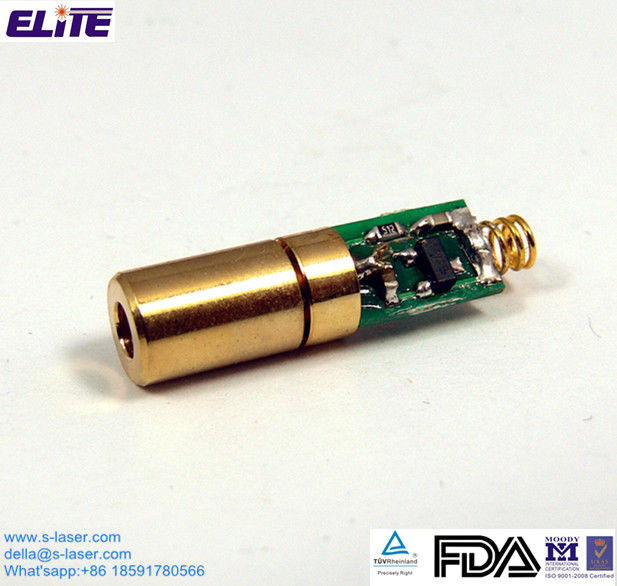

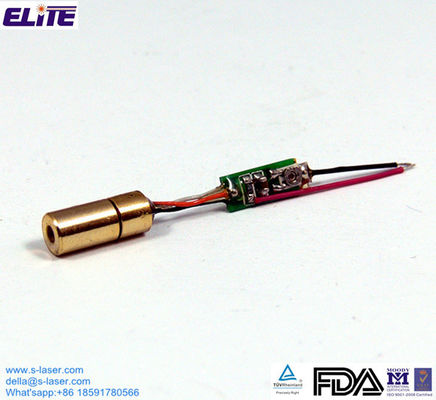

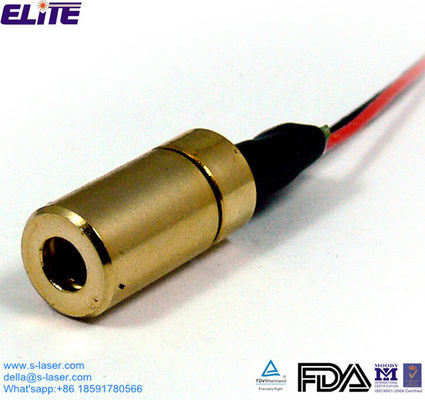

Laser Module, 635nm Direct Laser Module, 3mW-130mW 635nm Direct Laser Module Dot Beam with Built-in PD
1.Elite 635nm Laser Diode Module Description:
635nm laser diode modules with built-in PD greatly improved its reliability and stability, which is helpful to the miniaturized of products.
It can be widely used into industrial instruments and equipments, outdoor testing instruments and equipment etc.
b. Compact size
c. Low power consumption
d. Customized solutions for OEM applications
|
Model |
Wave Length |
Output Power |
Driver |
Aperture |
Divergence |
Beam Size |
Dimension |
|
EL63D05IP1 |
635nm |
<3.2mW |
APC |
Dia.2.5mm |
<0.6mrad |
<1mm@10m |
Dia.6.5x12mm |
|
EL63D05IG1 |
635nm |
<2.5mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.5mm@10m |
Dia.8x35mm |
|
EL63D05IG2 |
635nm |
<3.2mW |
APC |
Dia.5.0mm |
<0.3mrad |
3x6mm@5m |
Dia.10x35mm |
|
EL63D05IG3 |
635nm |
<3.2mW |
APC |
Dia.6.0mm |
<0.3mrad |
4x8mm@10m |
Dia.12x40mm |
|
EL63D05IG4 |
635nm |
<3.5mW |
APC |
Dia.6.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.14x50mm |
|
EL63D05IG5 |
635nm |
<2.5mW |
APC |
Dia.7.0mm |
<0.1mrad |
Dia.10mm@30m |
Dia.16x60mm |
|
EL63D10IP1 |
635nm |
<6.5mW |
APC |
Dia.2.5mm |
<0.6mrad |
<1mm@10m |
Dia.6.5x12mm |
|
EL63D10IG1 |
635nm |
<5.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.5mm@10m |
Dia.8x35mm |
|
EL63D10IG2 |
635nm |
<7.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
3x6mm@5m |
Dia.10x35mm |
|
EL63D10IG3 |
635nm |
<7.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
4x8mm@10m |
Dia.12x40mm |
|
EL63D10IG4 |
635nm |
<8.0mW |
APC |
Dia.6.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.14x50mm |
|
EL63D10IG5 |
635nm |
<5.0mW |
APC |
Dia.7.0mm |
<0.1mrad |
Dia.10mm@30m |
Dia.16x60mm |
|
EL63D20IG1 |
637nm |
<10.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.5mm@10m |
Dia.10x35mm |
|
EL63D20IG2 |
637nm |
<13.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
3x6mm@5m |
Dia.12x40mm |
|
EL63D20IG3 |
637nm |
<14.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
4x8mm@10m |
Dia.14x50mm |
|
EL63D20IG4 |
637nm |
<16.0mW |
APC |
Dia.6.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.16x60mm |
|
EL63D20IG5 |
637nm |
<10.0mW |
APC |
Dia.7.0mm |
<0.1mrad |
Dia.10mm@30m |
Dia.20x70mm |
|
EL63D30IG1 |
638nm |
<15.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.5mm@10m |
Dia.10x35mm |
|
EL63D30IG2 |
638nm |
<22.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
3x6mm@5m |
Dia.12x40mm |
|
EL63D30IG3 |
638nm |
<24.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
4x8mm@10m |
Dia.14x50mm |
|
EL63D30IG4 |
638nm |
<18.0mW |
APC |
Dia.6.0mm |
<0.2mrad |
Dia.15mm@30m |
Dia.16x60mm |
|
EL63D30IG5 |
638nm |
<15.0mW |
APC |
Dia.7.0mm |
<0.1mrad |
Dia.15mm@50m |
Dia.20x70mm |
|
EL63D40IG1 |
638nm |
<20.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.5mm@10m |
Dia.10x35mm |
|
EL63D40IG2 |
638nm |
<28.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
3x6mm@5m |
Dia.12x40mm |
|
EL63D40IG3 |
638nm |
<30.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
4x8mm@10m |
Dia.14x50mm |
|
EL63D40IG4 |
638nm |
<25.0mW |
APC |
Dia.6.0mm |
<0.2mrad |
Dia.15mm@30m |
Dia.16x60mm |
|
EL63D40IG5 |
638nm |
<20.0mW |
APC |
Dia.7.0mm |
<0.1mrad |
Dia.15mm@50m |
Dia.20x70mm |
|
EL63D60IG1 |
640nm |
<40.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.14x50mm |
|
EL63D60IG2 |
640nm |
<45.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
4x6mm@10m |
Dia.16x60mm |
|
EL63D60IG3 |
640nm |
<50.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
6x10mm@20m |
Dia.20x70mm |
|
EL63D80IG1 |
640nm |
<50.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.14x50mm |
|
EL63D80IG2 |
640nm |
<60.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
4x6mm@10m |
Dia.16x60mm |
|
EL63D80IG3 |
640nm |
<65.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
6x10mm@20m |
Dia.20x70mm |
|
EL63D100IG1 |
642nm |
<60.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.16x60mm |
|
EL63D100IG2 |
642nm |
<75.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
4x6mm@10m |
Dia.20x70mm |
|
EL63D100IG3 |
642nm |
<80.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
6x10mm@20m |
Dia.22x70mm |
|
EL63D130IG1 |
642nm |
<75.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.16x60mm |
|
EL63D130IG2 |
642nm |
<100.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
4x6mm@10m |
Dia.20x70mm |
|
EL63D130IG3 |
642nm |
<110.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
6x10mm@20m |
Dia.22x70mm |
|
EL63D150IG1 |
642nm |
<85.0mW |
APC |
Dia.4.0mm |
<0.2mrad |
Dia.10mm@20m |
Dia.16x60mm |
|
EL63D150IG2 |
642nm |
<120.0mW |
APC |
Dia.5.0mm |
<0.3mrad |
4x6mm@10m |
Dia.20x70mm |
|
EL63D150IG3 |
642nm |
<130.0mW |
APC |
Dia.6.0mm |
<0.3mrad |
6x10mm@20m |
Dia.22x70mm |
Note:
1. The Dot series laser diode module is customized product. Thus the dimension, dot size, divergence and power output could be customized.
2. If the model listed is not suitable, please advise your detailed requirements, we will design the laser module according to yours.
3. Elite is continually developing new models and launching to market. We will advise suitable model upon enquiry.
4. Elite 635nm Laser Diode Module Applications:
a. Laser alignment and positioning
b. Industrial instruments and equipments
c. Medical Treatment Instruments
d. Other OEM applications……
5.Why Choose us?
a.12 years rich industry experience since 2003
b.SGS TUV assessed supplier
c.Have FDA, ISO9001:2008, IEC certificates
d.Cooperation with Top 500 Global Companies like GE, Corning etc.
6. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 100,000pcs per month.
Packaging Details: Each module packed into anti-static plastic bag, every ten pieces wrapped with bubble paper, bulk into export cartons.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
7.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
8.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
9.Elite QC Flow:
a.Professional Power Meter for double check
b.Qualified professional staff for the beam size/line thickness testing
c.Strictly surface Inspection before load to the warehouse
10.Elite Factory:
Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, fiber coupled laser modules, DPSS laser modules, bore sights, laser sights and related laser instruments like laser pointers etc.
Elite’s products have been widely used in industrial positioning, bar code scan, medical instruments, detecting instruments, surveying instruments, laser instruments, gun laser sights, wild explore instruments, military sight collimating, laser performance systems, laser tools etc.
With certificates of ISO 9001:2008, FDA, IEC, GB and strong OEM & ODM ability, we assure our customers with quality, reliable and consistent products delivery.
11.Elite Production Process:
12.Products We Offered:
Industrial Laser Diode Module
Mini Laser Diode Module (520nm, 635nm, 650nm and 850nm)
520nm Dot Laser Diode Module
520nm Line Laser Diode Module
635nm Dot Laser Diode Module
650nm Dot Laser Diode Module
635nm and 650nm Line Laser Diode Module
405nm Laser Diode Module
445nm Laser Diode Module
Fiber Coupled Laser Module
RGB Fiber Coupled Laser Module
RGB Laser Diode Module
Green 520mm Direct Laser Diode Module
DPSS Green Laser Module (1-200mw)
Infrared Laser Diode Module (480nm, 808nm, 830nm, 850nm and 980nm)
Well-Distributed Line Laser Module
High Stability Laser Module
Micro Beam (Dot and Line) Laser Diode Module
High Power Laser Module
Laser Line Projector
Laser Diode Collimator
Laser Range Finder or Laser Distance Meter
Laser Pointer
Laser Bore Sight or Gun Sight
Laser Sight
Laser Bullet
Rail
Red Dot Sight
Tactical Flashlight
Laser Flashlight (Blue, Red, Green)
Red or Green LED Flashlight
13.Meet us on Exhibitions:
a.Shot Show Exhibition held in USA in January.
b.Laser World of PHOTONICS held in Germany in June.
c.Laser World of PHOTONICS held in China in March.
Want best quality laser/bore sigh products? Contact me please. Elite is your best choice with strong OEM & ODM ability.
