Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | Dot Laser Diode Module |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |
| High Light: | laser diode |
||
|---|---|---|---|

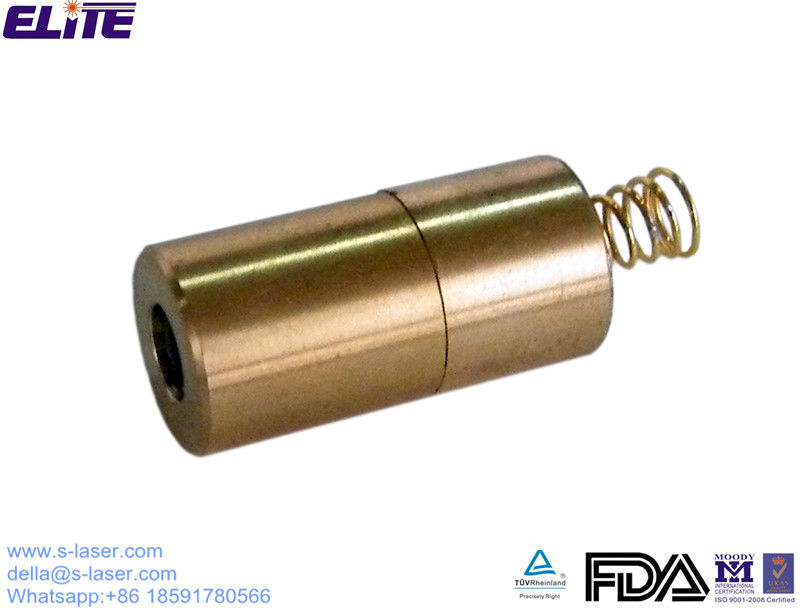

Elite have many types of dot Laser Diode Module for different application.The light spot can be ellipse and round shape with varied beam size,aperture and divergence.The difference depend on the glass lens or plastic lens.Customers can chose different types according to their specific applications.
|
Model |
Wavelenth |
Power Output |
Divergence(mrad) |
Beam Size |
Lens |
Dimension |
|
EL65D05IP1 |
650nm |
<3.0 |
<0.6 |
<1mm(@1m) |
Plastic |
6.5x11 |
|
EL65D05IG1 |
650nm |
<2.0 |
<0.1 |
<4mm(@5m) |
Glass |
|
|
EL65D05IG2 |
650nm |
<3.0 |
<0.2 |
3x6mm(@5m) |
Glass |
|
|
EL63D05IG1 |
635nm |
<2.0 |
<0.1 |
<4mm(@5m) |
Glass |
|
|
EL63D05IG2 |
635nm |
<3.0 |
<0.2 |
3x6(@5m) |
Glass |
|
|
EL65D10IP1 |
650nm |
<6.5 |
<0.6 |
<1mm(@1m) |
Plastic |
|
|
EL65D10IG1 |
650nm |
<4.5 |
<0.1 |
<5mm(@10m) |
Glass |
|
|
EL65D10IG2 |
650nm |
<6.0 |
<0.2 |
4x8(@10m) |
Glass |
|
|
EL63D10IG1 |
635nm |
<4.5 |
<0.1 |
<5mm(@10m) |
Glass |
|
|
EL63D10IG2 |
635nm |
<6.0 |
<0.2 |
4x8(@10m) |
Glass |
|
|
EL65D20IG1 |
650nm |
<10 |
<0.1 |
<5mm(@10m) |
Glass |
|
|
< |
