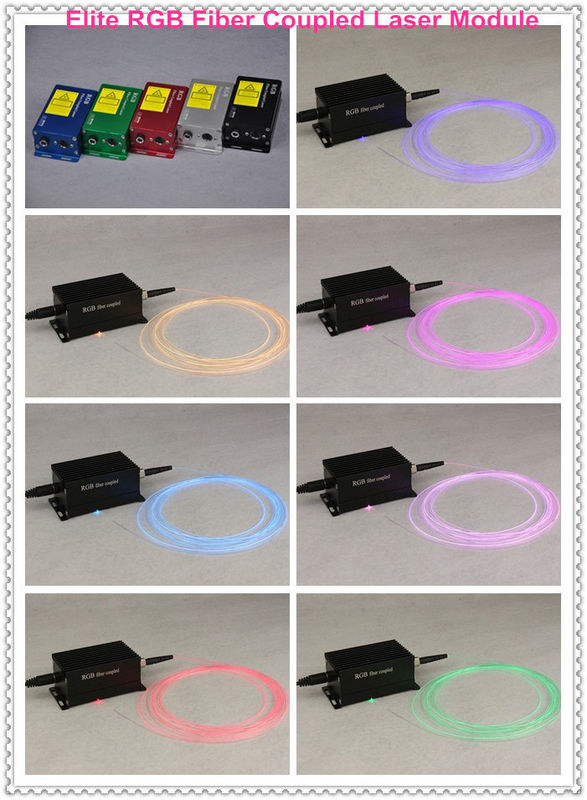

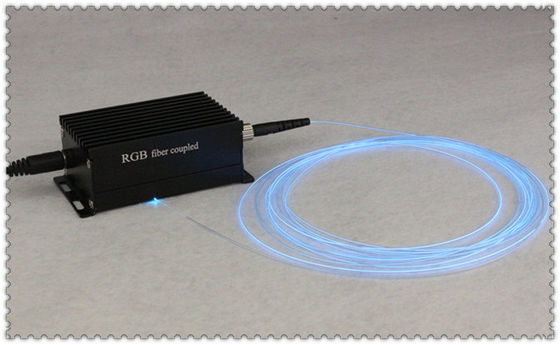

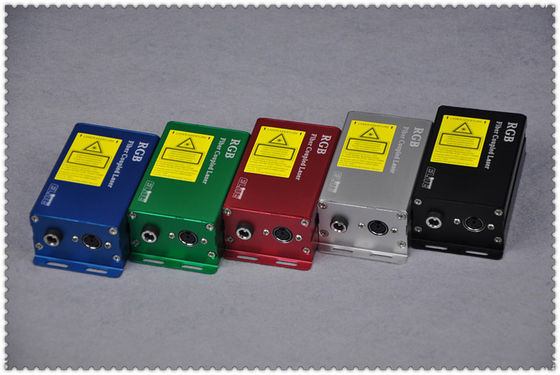

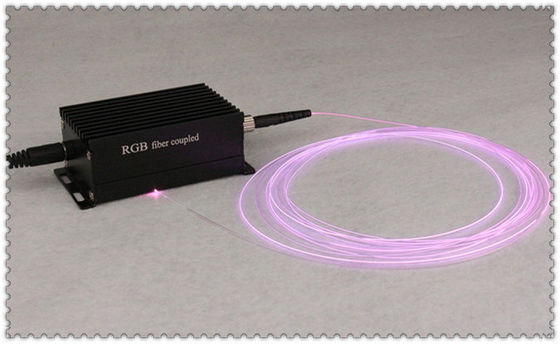

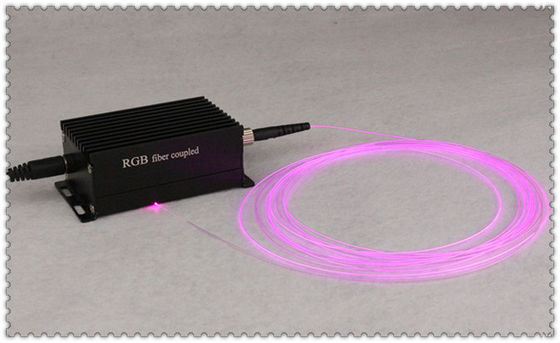

Elite 250mw RGB Fiber Coupled Laser Module for Corning Light Diffusing Fiber ST Connector

Product Details:

Place of Origin:	CHINA
Brand Name:	AIMLASER, ELITELASER
Certification:	FDA
Model Number:	RGB-250ST 250mw RGB Fiber Laser Module

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	FOB Xi'an China
Packaging Details:	Anti-Static Bag or PE Bag
Delivery Time:	2-4 Weeks
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	20,000pcs/Month

Contact Now

Detailed Product Description

High Light:

RGB-10ST 5mw RGB Fiber Optic Laser Module with ST Connector for Fibrance Fiber

FDA Certified RGB-10ST 5mw Solution for Bendable Fiber Optics Lines with Laser

RGB-10ST 5mw Lasers and Connectors for Fibrance Fiber

RGB Fiber Coupled Laser Diode Module for Artworks, Design Gallery, Home decoration, Electornic Products etc.

1.Elite RGB Fiber Coupled Laser Diode Module Introduction:

Elite could customize RGB fiber coupled laser module. The wavelength includes 445nm, 520nm, 635nm.

The diameters of fiber are 105μm, 125μm, 170μm, 200μm, multi mode fiber etc. It has SMA, FC or ST connector and different fiber lenght.

The LD driver or TEC temperature control could also be customized.

2.Elite RGB Fiber Coupled Laser Module Specifications:

Item	Specification
Wavelength	445nm, 520nm, 635nm
Output Power	1mw-300mw
Fiber Core	105μm,125μm, 170μm, 200μm
Numerical Aperture	0.22mm, 0.37mm, 0.53mm
Fiber Length	0.5-10m
Optics	Glass lens
Packaged Type	Through Hole
Case Material	Aluminum black anodized
Beam Size	Customized
Connector	FC, ST or SMA
Dimension	Customized
Divergence	0.6mrad
CDRH Class	Class IIIb Laser, ROHS compatible
Operating Temperature	-10-50°C
Storage Temperature	-40-80°C
Voltage Stability	>98% (at 2.7-5.5VDC)
Temperature Stability	>95% (at -10°C-50°C)
Circuit Protection	Static, Surge, Reverse Polarity Protected
Lifetime	>6,000hrs

3. Please provide below information when you have inquiry:

a.Wavelength : **nm

b.Output Powder: **mw

c.Fiber core radium: **μm

d.Fiber length: **m

e.Connector: FC or ST or SMA

4. Packaging & Delivery & Payment Information:

MOQ: 2pcs.

Supply Ability: 2,000pcs per month.

Packaging Details: Each packed into static free plastic bag, bulk into export cartons.

Delivery Time: 10-20 days depending on order quantity.

Shipment Term: FOB Xi’an, China.

Payment Terms: T/T, Western Union, Paypal

Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.

5.Warranty:

We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

6.CAUTION:

The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.

7.Elite Factory:

Elite 250mw RGB Fiber Coupled Laser Module for Corning Light Diffusing Fiber ST Connector 0
