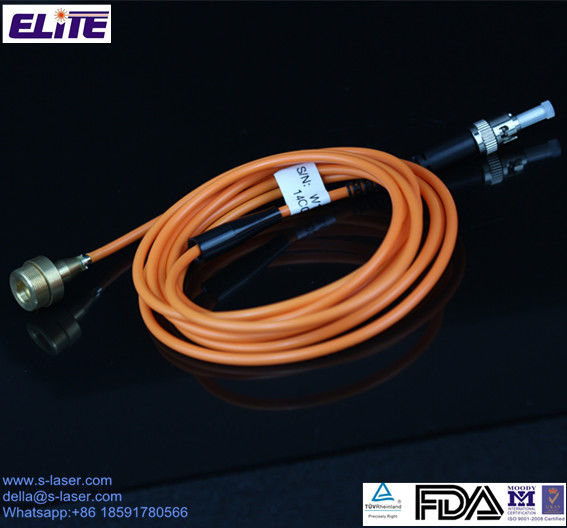

1.Elite Fiber Coupled Laser Diode Module Introduction:

Elite could customize the laser module with fiber.The diameters of fiber are 4μm, 9μm, single mode fiber, 50μm, 62.5μm, 105μm, 125μm, 170μm, 200μm, multi mode fiber etc. It has SMA, FC or ST connector and different fiber length.

The wavelength includes 405nm, 445nm, 520nm, 532nm, 635nm, 650nm, 670nm, 690nm, 740nm, 780nm, 808nm，830nm, 850nm, 940nm and 980nm.

The LD driver or TEC temperature control could also be customized.

2.Low Power coaxial Series Fiber Coupled Laser Diode Module Descriptions:

Fiber coupled laser module with wavelength from 405nm to 980nm and power less than 300mW could be made into coaxial, whose characteristics are lower power consumption and compact size and customized LD driver upon customer’s request for different usage.

PD control can also be added to increase stability and reliability of the laser module.

3. Elite 850nm 1mw-300mw Low Power Coaxial Fiber Coupled Laser Module Features:

a.High coupling efficiency

b.Good quality of spot

c.Stable Performance

d.Long life: >8,000hrs.

4. Elite 850nm 1mw-300mw Low Power Coaxial Fiber Coupled Laser Module Specifications:

5.Low Power Coaxial Packaged Fiber Coupled Laser Diode Module Applications:

a.Communications

b.High speed optical fiber communication

c.Short and intermediate reach

d.Printing

e.Science and research

f.Biological detection and analysis, gene detection, biochemical analysis

g.Medical laser treatment: bio-medical treatment, therapeutic procedures, aesthetic treatments

h.Other new applications

6.Elite also produces high power butterfly packaged fiber coupled laser diode modules. See below introductions:

a.High power butterfly Packaged Fiber Coupled Laser Diode Module Descriptions:

Fiber coupled laser module with wavelength from 635nm to 980nm and power more than 500mW is butterfly package.

We can provide customized TEC temperature control and LD driver to increase the laser module’s work temperature range and reliability.

The diameter of fiber cores are 50μm, 62.5μm, 105μm, 125μm, 170μm, 200μm, 400μm, multi mode fiber etc.

PD control can also be added to increase laser module stability.

b.High Power Butterfly Packaged Coupled Laser Diode Module Specifications:

c.High Power Butterfly Packaged Coupled Laser Diode Module Applications:

a.Defense field: illumination, sensing

b.Industrial field: optical pumping, measurement and analysis diagnostics, inspection of PCB and micro parts

c.Medical laser treatment: bio-medical treatment, therapeutic procedures, aesthetic treatments

d.Science and research

e.End pumping

f.Plastics welding

g.Other new applications

d.High Power Butterfly Packaged Coupled Laser Diode Module Photo:

7. Please provide below information when you have inquiry:

a.Wavelength : **nm

b.Output Powder: **mw

c.Fiber core radium: **μm

d.Fiber length: **m

e.Connector: FC or ST or SMA

8. Packaging & Delivery & Payment Information:

MOQ: 10pcs.

Supply Ability: 10,000pcs per month.

Packaging Details: Each module packed into static free bag, bulk into export cartons.

Delivery Time: 10-20 days after payment received.

Shipment Term: FOB Xi’an, China.

Payment Terms: T/T, Western Union, Paypal

Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.

9.Warranty:

We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

10.Elite QC Flow:

a.Professional Power Meter for double check

b.Qualified professional staff for the beam size/line thickness testing

c.Strictly surface Inspection before load to the warehouse

11.Elite Factory:

Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, fiber coupled laser modules, DPSS laser modules, bore sights, laser sights and related laser instruments like laser pointers etc.

Elite’s products have been widely used in industrial positioning, bar code scan, medical instruments, detecting instruments, surveying instruments, laser instruments, gun laser sights, wild explore instruments, military sight collimating, laser performance systems, laser tools etc.

With certificates of ISO 9001:2000, FDA, IEC, GB and strong OEM & ODM ability, we assure our customers with quality, reliable and consistent products delivery.

12.Elite Production Process:

13.Products We Offered:

Industrial Laser Diode Module

Mini Laser Diode Module

520nm Dot & Line Laser Diode Module

635nm & 650nm Dot & Line Laser Diode Module

405nm & 445nm Laser Diode Module

Fiber Coupled & RGB Fiber Coupled Laser Module

RGB Laser Diode Module

Green 520mm Direct Laser Diode Module

1-200mw DPSS Green Laser Module

Infrared Laser Diode Module

Micro Beam (Dot and Line) Laser Diode Module

Laser Line Projector

Laser Range Finder

Laser Bore Sight or Gun Sight

Laser Pointer

Laser Sight......

14.Meet us on Exhibitions:

a.Shot Show Exhibition held in USA in January.

b.Laser World of PHOTONICS held in Germany in June.

c.Laser World of PHOTONICS held in China in March.

Want best quality laser/bore sigh products? Contact me please. Elite is your best choice with strong OEM & ODM ability.
