Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | Mini Laser Module |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |
| Wavelength: | Infrared | Output Power: | 1mW To 5mW |
|---|---|---|---|

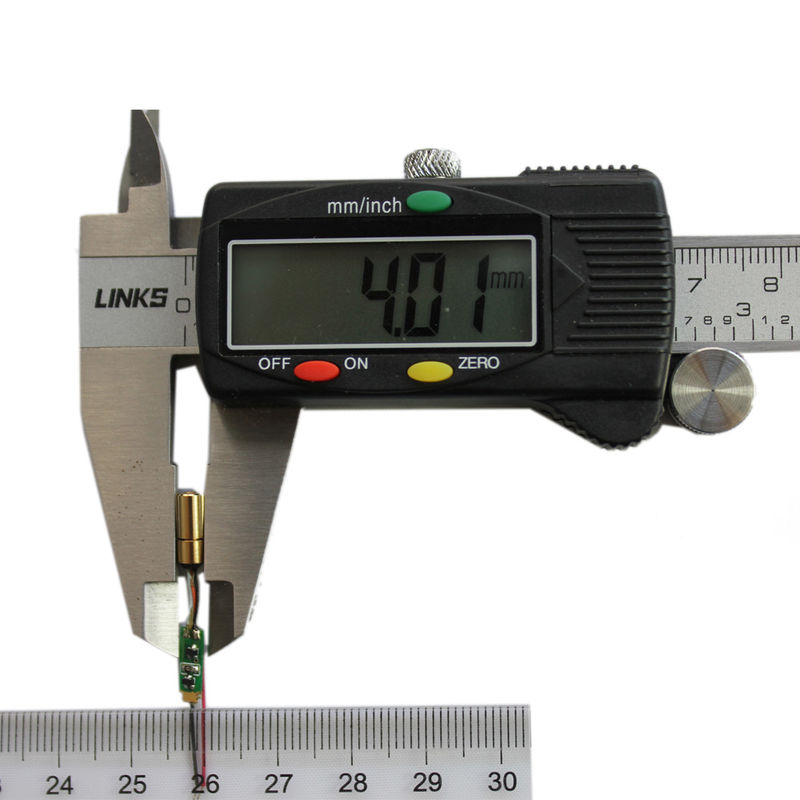

| Beam Size: | 4x8mm@10m | Housing Size: | 3.8x8.5mm Or 4x10mm |
| Material: | Brass | Lifetime: | Over 8000hrs |
850nm 5mw Infrared Mini Laser Module Pistol Laser Sight Laser Grips 4x10mm

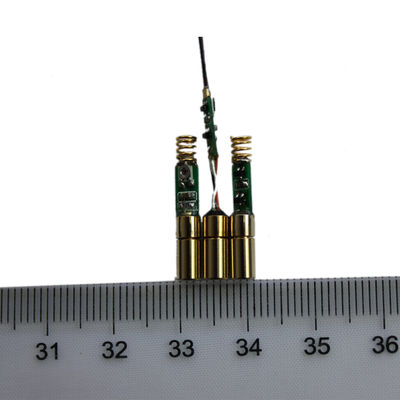

1.Elite Mini Laser Diode Module Description:
Elite mini laser diode module, small dimension with low power consumption, is particularly suitable for built-in miniature devices and tools, which could enable the laser tools and equipment miniaturized.
Mini laser diode module is mainly applied in gun laser sighting, bar code scanning and laser alignment tools etc.
Elite supply mini Compact laser module in red, green, infrared to suit into gun applications.
2.Elite Mini Laser Diode Module Features:
a.High quality
b.Mini size
c.Low power consumption
d.APC power control
e.Long life operation:>10,000hrs
f.Customized solutions for OEM applications
3.Elite Mini Laser Diode Module Specifications:
|
Model |
Wave Length |
Output Power |
Aperture |
Divergence
|
Beam Size |
Lens |
Dimension |
|
MN520-05FA |
520nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.4.0x8.5mm |
|
MN520-05FB |
520nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN520-05FC |
520nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN520-10FA |
520nm |
<5.0mw |
Dia.1.8mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.4.0x8.5mm |
|
MN520-10FB |
520nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN520-10FC |
520nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN635-05FA |
635nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN635-05FB |
635nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN635-05FC |
635nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN635-10FA |
635nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN635-10FB |
635nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN635-10FC |
635nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN650-05FA |
650nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN650-05FB |
650nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN650-05FC |
650nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN650-10FA |
650nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN650-10FB |
650nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN650-10FC |
650nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN850-05FA |
850nm |
<3.5mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN850-05FB |
850nm |
<3.2mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN850-05FC |
850nm |
<3.0mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
|
MN850-10FA |
850nm |
<5.0mw |
Dia.2.0mm |
0.8mrad |
6x12mm(@10m) |
Optical Glass |
Dia.3.8x8.5mm |
|
MN850-10FB |
850nm |
<4.5mw |
Dia.2.4mm |
0.6mrad |
5x10mm(@10m) |
Optical Glass |
Dia.4.0x10mm |
|
MN850-10FC |
850nm |
<4.5mw |
Dia.3.0mm |
0.4mrad |
4x8mm(@10m) |
Optical Glass |
Dia.6.0x12mm |
Note: We provide customize solutions according to your requirement.
4.Elite Mini Laser Module Applications:
a.Laser alignment, aiming, positioning and pointing
b.Industrial instrument and equipment
c.Gun laser sight
d.Bar code scan
5. Why Choose us?
12 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Supplier of many Amerian Gun Sight Manufacturers.
6. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 30,000pcs per month.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/FEDEX/UPS Air-Express or sea transportation.
7.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
8.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
