Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | MN520-10FB |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |
| Wavelength: | 520nm | Output Power: | 5mW |
|---|---|---|---|
| Optics: | Glass Lens | CDRH Class: | Class IIIa |
| Dimensions: | 4x8.5mm (APC Outside) | Case Material: | Brass |

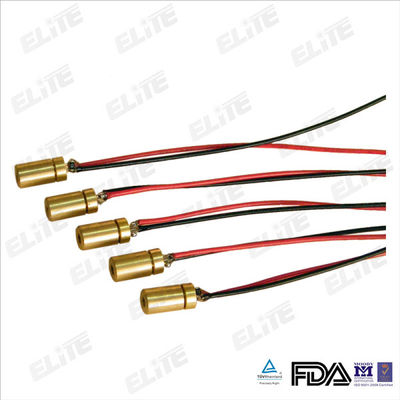

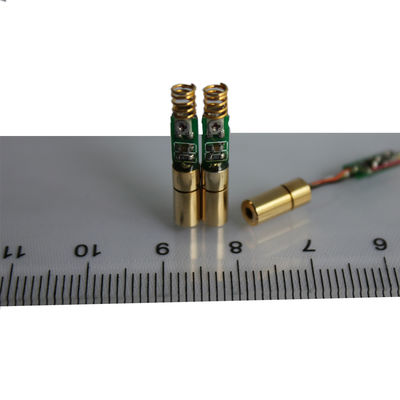

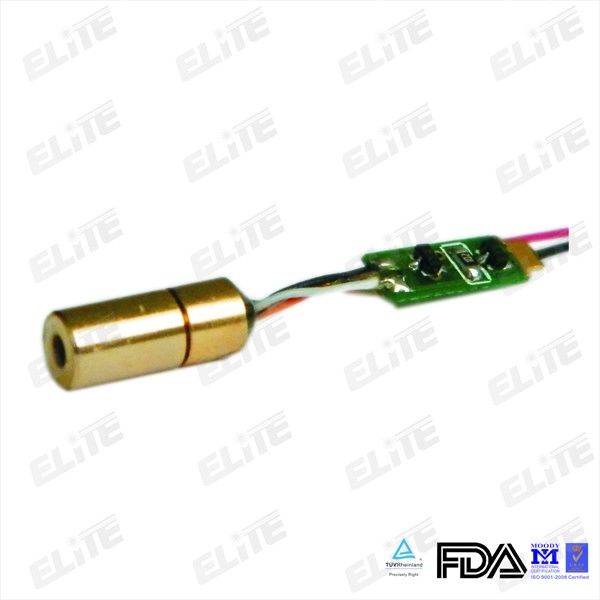

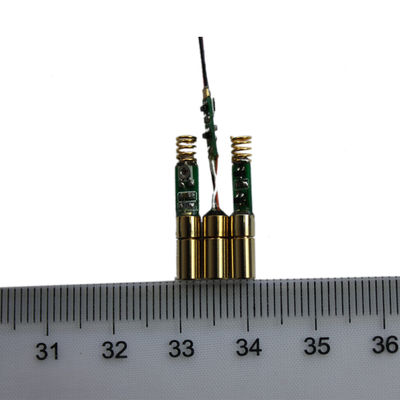

4*8mm Mini Green Laser Diode Module with APC for Laser Aiming Devices
Direct Green Laser Diode Module, mini laser module, gun laser sight, aiming laser
1. Descriptions:
The MN520-10FB is a green mini laser module subassembly with collimated beam. The maximum laser
output power is 5.0 mW at 520nm.
2. Features:
3. Optical and Electrical Characteristics:
| Parameters | Specifications |
| Wavelength: | 520±5nm |
| Output Power: | ≤5.0mw |
| Laser Modes: | CW |
| Output Aperture: | Dia 2.4mm |
| Beam Size: | <5x12mm (@10m) and <10x22mm (@20m) |
| Divergence: | <0.8mrad |
| Optics: | Glass lens |
| Operating Current: | <130mA |
| Operating Voltage: | 3.0VDC |
| CDRH Class: | Class IIIa |
| MTTF: | 8000 Hrs. |
4. Mechanical Characteristics:
| Parameter | Specifications |

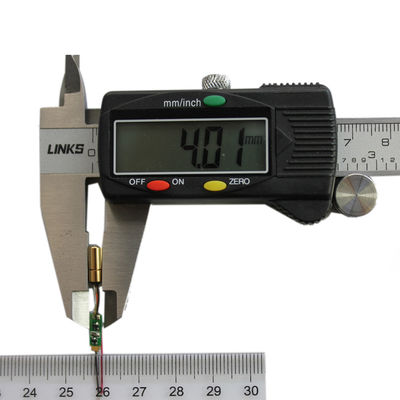

| Dimensions: | 4.0(D) x 10.0(L)mm (APC outside) |
| Cable Length: | 50mm 30AWG |
| Case Material: | Brass |
| Vibration: | DIN EN 60068-2-6 Standard |
| Shock: | DIN EN 60068-2-29 Standard |
5. Why Choose us?
6. Delivery & Payment Information:
7. Elite Factory Over view:
Established in 2003, Elite covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of red, green, blue and IR laser diode modules, laser training bullet, laser bore sighters, laser sights, laser illuminations etc.
