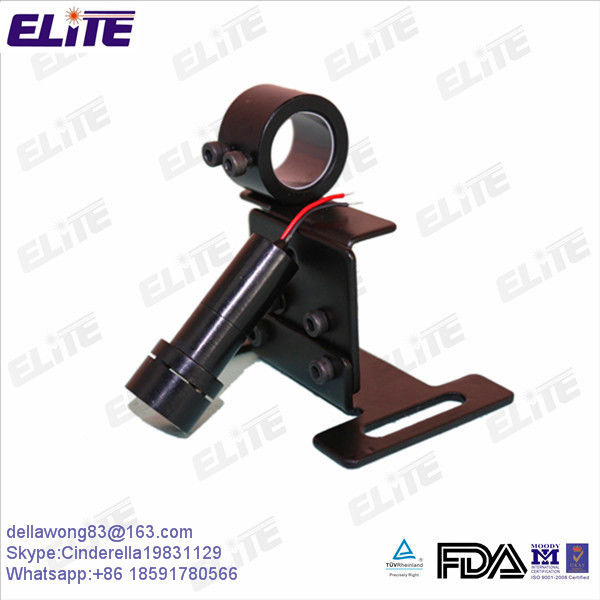

Aluminum Anodized 520nm 50mW Green Laser Line Projector, China Green Line Laser Supplier

Product Details:

Place of Origin:	CHINA
Brand Name:	AIMLASER, ELITELASER
Certification:	FDA
Model Number:	ELM520-100A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	FOB Xi'an China
Packaging Details:	Anti-Static Bag or PE Bag
Delivery Time:	2-4 Weeks
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	20,000pcs/Month

Contact Now

Detailed Product Description

Wavelength:	520nm	Output Power:	50mW
Optics:	Glass Lens	CDRH Class:	Class IIIb
Dimensions:	26x110mm (APC Inside)	Case Material:	Aluminum Black Anodized

Aluminum Anodized 520nm 50mW Green Laser Line Projector, China Green Line Laser Module Supplier

1. Descriptions:

The ELM520-100A is a green laser line projector for stone, wood and textile cutting machine. The
maximum laser output power is 50.0mW at 520nm.

2. Features:

Wavelength: 520±5nm
Optical output power: ≤50.0mW
Low operating current: <320mA
Low operating voltage: 5.0VDC or 220VAC, 50/60Hz
Class IIIb laser, CDRH/ROHS compatible
Static, Surge, and Reverse Polarity Protected
Circuit control: Auto power control (APC)
Operating Temperature: -10 to 50°C

3. Optical and Electrical Characteristics:

Wavelength: 520±5nm
Output Power: ≤50.0mw
Output Aperture: Dia 5.0mm
Line Thickness: <1.5mm (@3m) and <2.5mm (@5m)
Fan Angle: 90°( Line Length 6m@3m)
Divergence: 0.6mrad
Optics: Glass lens
Operating Current: <180mA@5.0VDC
Operating Voltage: 5.0VDC or 220VAC, 50/60Hz
CDRH Class: Class IIIb
MTTF: 10000Hrs.

4. Mechanical Characteristics:

Dimensions: 26x110mm (APC Inside)
Cable Length: 800mm with Dia. 3.5mm cable
Case Materia: Aluminum black anodized

5. Why Choose us?

13 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Cooperation with Top 500 Global Companies like GE, Corning etc.

6. Delivery & Payment Information:

Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/UPS/TNT/FedEx Air-Express

7. Elite Factory Over view:

Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, Bios lasers, fiber coupled laser modules, DPSS laser modules, laser line projector, laser bore sighters, laser sights etc.
