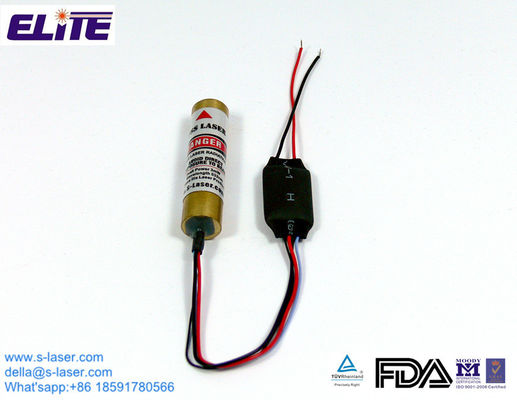

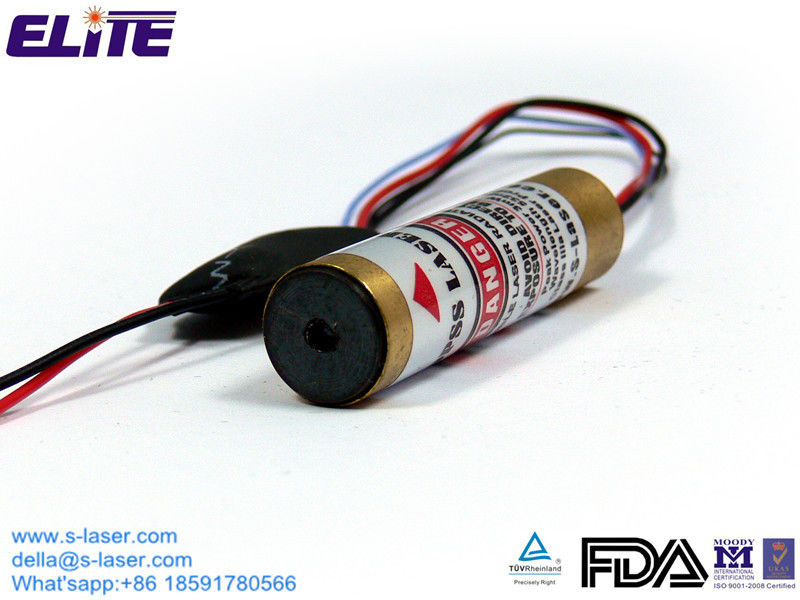

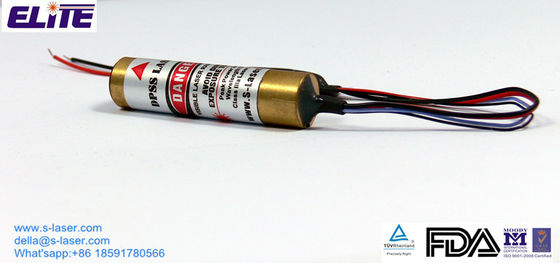

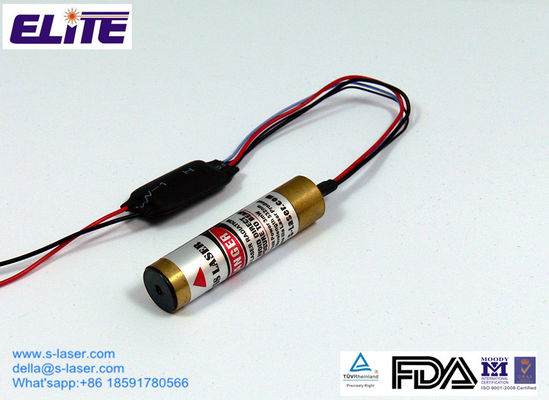

VB520D05VG2 520nm 3.5mW 3-5VDC 30mA Green Dot Laser Diode Module with APC

Product Details:

Place of Origin:	CHINA
Brand Name:	AIMLASER, ELITELASER
Certification:	FDA
Model Number:	VB520D05VG2 Green Dot Laser Module

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	FOB Xi'an China
Packaging Details:	Anti-Static Bag or PE Bag
Delivery Time:	2-4 Weeks
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	20,000pcs/Month

Contact Now

Detailed Product Description

Type:	Laser Diode	Package Type:	Through Hole

520nm 3.5mW Compact Green Dot Laser Diode Module, 3-5V DC, CW Mode, Operation Current 30mA

VB520D05VG2 Compact Laser Dot Modules

1.Descriptions

The VB520D05VG2 is a green dot laser subassembly with collimated beam. The maximum laser output power is 3.5 mW at 520nm.

2.Optical and Electrical Characteristics

Wavelength: 520nm
Output Power: < 3.5 mw
Laser Modes: CW
Output Aperture:Dia.5.0 mm
Beam Size: <4*8 mm (@10m)
Divergence: 0.2mrad
Optics:Glass lens
Operating Current:< 30 mA
Operating Voltage:3-5 VDC
CDRH Class:Class IIIa
MTTF:10000 Hrs

CDRH Class: Class II or Class IIIa, CDRH/ROHS compatible

Circuit Protection:Static, Surge, and Reverse Polarity Protected
Circuit control: Auto power control (APC)
Operating Temperature: -10 to 50°C

3.Elite Laser Diode Module Applications:

a.Industrial laser alignment, positioning, pointing, surveying and detection equipment

b. Medical laser treatment instruments

c.3D measurement

d. Metrology equipment

e.Laser test equipment, fire alarm system

f.Laser analytical instrument

g.Chemical analysis, biological analysis

h.Laser diagnostics

i.Microfluidic system

g. Laser gas analysis

k.Oral dental lasers

l.Biomedical analysis

m.DNA sequencing, life science

n.Laboratory equipment, scientific research

o. laser barcode reader

p.Laser tools etc.

4. Why Choose us?

12 years rich industry experience since 2003

SGS TUV assessed supplier

Have FDA, ISO9001:2008, IEC certificates

Cooperation with Top 500 Global Companies like GE, Corning etc.

5. Packaging & Delivery & Payment Information:

MOQ: 2pcs.

Payment Terms: T/T, Western Union, Paypal

Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.

6.Warranty:

We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

7.CAUTION:

The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
