525nm 30mW Green Dot Laser Diode Module, 5V DC, CW Mode, Operation Current 240mA

EL52D50IG12 Laser Diode Modules

1.Descriptions:

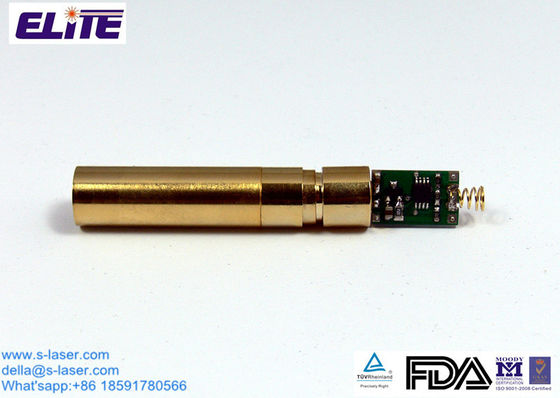

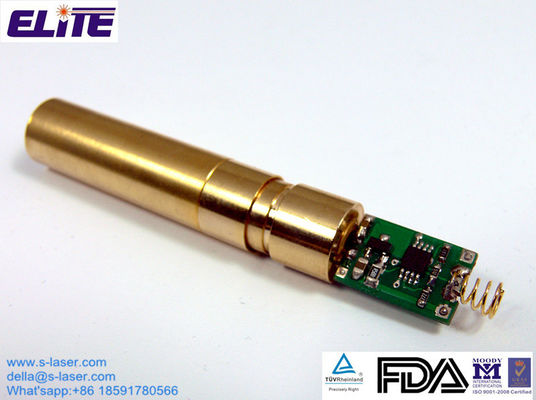

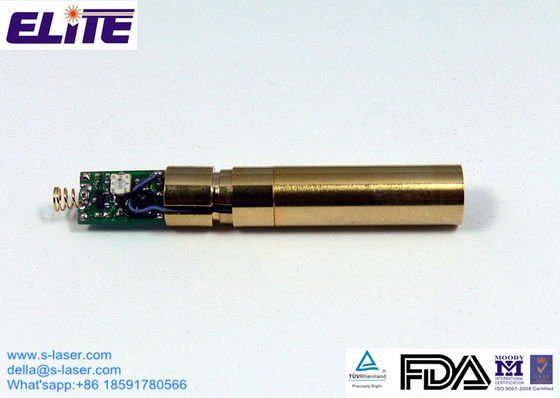

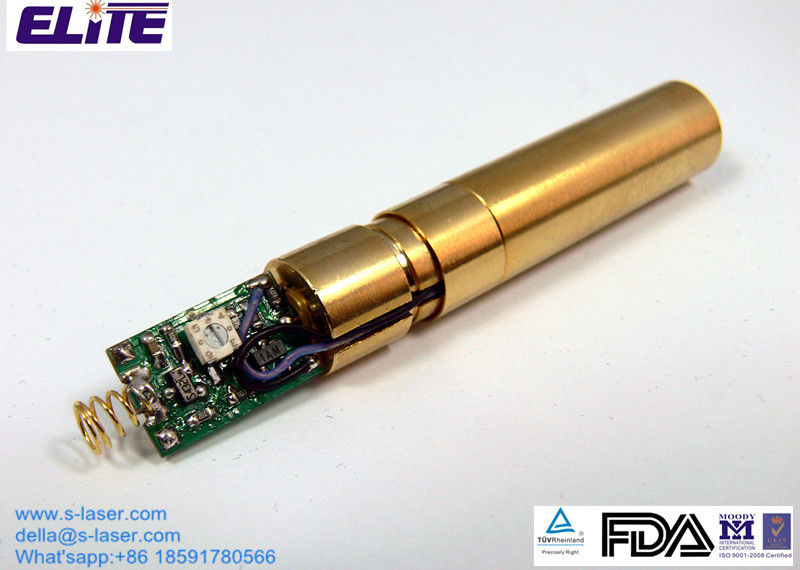

The EL52D50IG12 is a green laser module subassembly with collimated beam. The maximum laser output
power is 30.0 mW at 525nm.

2.Optical and Electrical Characteristics

Wavelength: 525 nm
Output Power: < 30.0 mw
Laser Modes: CW
Output Aperture:Dia.6.0 mm
Beam Size: <15.0 mm (@50m)
Divergence:<0.1mrad
Optics:Glass lens
Operating Current:< 240 mA
Operating Voltage:5 VDC
CDRH Class:Class IIIb
MTTF:6000 Hrs

CDRH Class:Class IIIa laser, CDRH/ROHS compatible

Circuit Protection:Static, Surge, and Reverse Polarity Protected
Circuit control: Auto constant current (ACC)
Operating Temperature: -10 to 50°C


3.Elite Laser Diode Module Applications:

a.Industrial laser alignment, positioning, pointing, surveying and detection equipment

b. Medical laser treatment instruments

c.3D measurement

d. Metrology equipment

e.Laser test equipment, fire alarm system

f.Laser analytical instrument

g.Chemical analysis, biological analysis

h.Laser diagnostics

i.Microfluidic system

g. Laser gas analysis

k.Oral dental lasers

l.Biomedical analysis

m.DNA sequencing, life science

n.Laboratory equipment, scientific research

o. laser barcode reader

p.Laser tools etc.

4. Why Choose us?

12 years rich industry experience since 2003

SGS TUV assessed supplier

Have FDA, ISO9001:2008, IEC certificates

Cooperation with Top 500 Global Companies like GE, Corning etc.

5. Packaging & Delivery & Payment Information:

MOQ: 2pcs.

Payment Terms: T/T, Western Union, Paypal

Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.

6.Warranty:

We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

7.CAUTION:

The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.

8.Elite Factory:

9.Elite Production Process:

10.Meet us on Exhibitions:

a.Shot Show Exhibition held in USA in January.

b.SPIE Photonics West held in USA in Feb.

c.Laser World of PHOTONICS held in Germany in June.

d.Laser World of PHOTONICS held in China in March.

e.Other laser exhibitions like CIOE China in Sept.
