Aiming Laser, your precision laser solution provider!
 |
| Place of Origin: | CHINA |
| Brand Name: | AIMLASER, ELITELASER |
| Certification: | FDA |
| Model Number: | GLM-010L 10mw DPSS Green Line Laser Module |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | FOB Xi'an China |
| Packaging Details: | Anti-Static Bag or PE Bag |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 20,000pcs/Month |
Elite produces laser module with 12 years industry experience for a wide range of OEM applications and also provide customized laser solutions.
We developed Wide Temperature Operating Green Laser Module which uses a special technology and could be operated stably within -10~50℃. It significantly solved the problem of narrow operating temperature limitation of normal green diode module.
Elite’s green laser module could be extensively used for harsh environment yield work, which has greatly broadened its application ranges. The other advantage of GLM is the low power consumption. The operating current of a 5mW GLM is only around 160mA and could be driven by batteries which make it possible to be hand held.
2.Elite GLM-010L 10mw Direct DPSS Green Line Laser Module Descriptions:
The GLM-010L is a green line laser sub-assembly with collimated beam. The maximum laser output power is 10mW at 532nm.
It is a Class IIIb laser product.
b.Mini size
c.High brightness
d.High stability and reliability
e.Low power consumption
f.APC power control
g.Long life operation
h.Customized solutions for OEM applications
|
Item |
Specification |
|
Wavelength |
532nm |
|
Dimension |
Dia.10*35mm, Dia.12*40mm |
|
Laser Modes |
CW |
|
Output Power |
10mw |
|
Output Aperture |
<3mm |
|
Line Thickness |
<1.5mm |
|
Divergence |
<0.6mrad |
|
Case Material |
Brass |
|
Beam Type |
Line |
| Line Width |
<4mm (at 10m) |
|
Fan Angle |
10°-100° |
|
Warm up Time |
Min.<1s, Typ.<2s, Max.<10s |
|
CDRH Class |
Class IIIb Laser, ROHS compatible |
|
Operating Voltage |
3VDC (50/60Hz) |
|
Operating Temperature |
0-45°C |
| Operating Voltage | <250mA |
|
Storage Temperature |
-20-70°C |
|
Power Stability |
>80% |
|
Protection |
Static, Surge, and Reverse Polarity Protected |
|
Lifetime |
>5,000hrs |
5.Elite Wide Temperature Operating Green Laser Module Applications:
a.Laser aiming, positioning and pointing
b.Dimensional scanning
c.Illumination
d.Industrial laser alignment
e.Scanning biochemistry
f.Material inspection
g.Medical alignment and treatment
h.Scientific equipment
i.Collimation
j.Optics instrument
k.Laser sight
l.Military Equipment
m.Surveying instrument
6.Why Choose us?
12 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Cooperation with Top 500 Global Companies like GE, Corning etc.
7. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 100,000pcs per month.

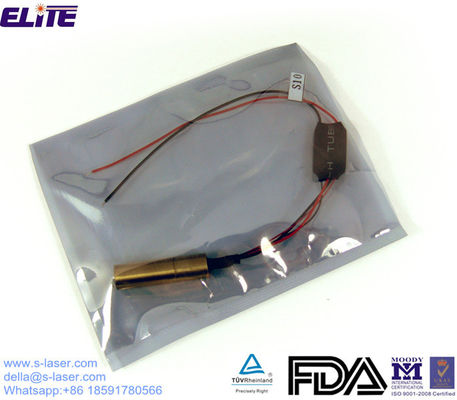

Packaging Details: Each packed into static free plastic bag, bulk into export cartons.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
8.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
9.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
10.Elite QC Flow:
a.Professional Power Meter for double check
b.Qualified professional staff for the beam size/line thickness testing
c.Strictly surface Inspection before load to the warehouse
11.Elite Factory:
Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, fiber coupled laser modules, DPSS laser modules, bore sights, laser sights and related laser instruments like laser pointers etc.
Elite’s products have been widely used in industrial positioning, bar code scan, medical instruments, detecting instruments, surveying instruments, laser instruments, gun laser sights, wild explore instruments, military sight collimating, laser performance systems, laser tools etc.
With certificates of ISO 9001:2008, FDA, IEC, GB and strong OEM & ODM ability, we assure our customers with quality, reliable and consistent products delivery.
12.Elite Production Process:
13.Products We Offered:
Industrial Laser Diode Module
Mini Laser Diode Module (520nm, 635nm, 650nm and 850nm)
520nm Dot Laser Diode Module
520nm Line Laser Diode Module
635nm Dot Laser Diode Module
650nm Dot Laser Diode Module
635nm and 650nm Line Laser Diode Module
405nm Laser Diode Module
445nm Laser Diode Module
Fiber Coupled Laser Module
RGB Fiber Coupled Laser Module
RGB Laser Diode Module
Green 520mm Direct Laser Diode Module
DPSS Green Laser Module (1-200mw)
Infrared Laser Diode Module (480nm, 808nm, 830nm, 850nm and 980nm)
Well-Distributed Line Laser Module
High Stability Laser Module
Micro Beam (Dot and Line) Laser Diode Module
High Power Laser Module
Laser Line Projector
Laser Diode Collimator
Laser Range Finder or Laser Distance Meter
Laser Pointer
Laser Bore Sight or Gun Sight
Laser Sight
Laser Bullet
Rail
Red Dot Sight
Tactical Flashlight
Laser Flashlight (Blue, Red, Green)
Red or Green LED Flashlight
14.Meet us on Exhibitions:
a.Shot Show Exhibition held in USA in January.
b.Laser World of PHOTONICS held in Germany in June.
c.Laser World of PHOTONICS held in China in March.
Want best quality laser/bore sigh products? Contact me please. Elite is your best choice with strong OEM & ODM ability.
